SMFJ30A, SMFJ5.0A, SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR DIODE

SMFJ5.0A(CA) - SMFJ170A(CA) SURFACE MOUNT TRANSIENT VOLTAGE SUPPESSOR DIODE VOLTAGE RANGE: 5.0 - 17 0V POWER: 200Wa t t s .

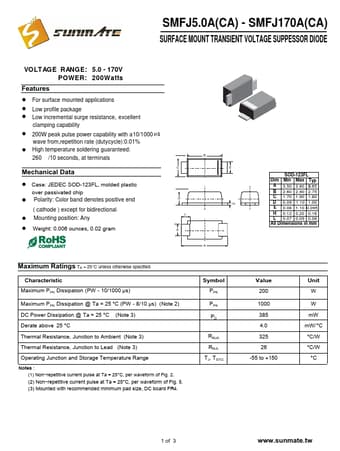

datasheet Preview Page 1 from Datasheet4u.com

SMFJ5.0A-SunMate.pdf

SMFJ30A Datasheet Preview — This datasheet PDF includes multiple part numbers: SMFJ30A, SMFJ5.0A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SMFJ30A, SMFJ5.0A

Manufacturer:

SunMate

File Size:

1.95 MB

Description:

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR DIODE

Note:

This datasheet PDF includes multiple part numbers: SMFJ30A, SMFJ5.0A.
Please refer to the document for exact specifications by model.

Applications

* ! Low profile package ! Low incremental surge resistance, excellent clamping capability ! 200W peak pulse power capability with a10/1000 µs wave from,repetition rate (dutycycle):0.01% ! High temperature soldering guaranteed: 260 /10 seconds, at terminals B Mechanical Data C E ! Case: JEDEC
