SMZ130, SMZ3V6 - SURFACE MOUNT SILICON ZENER DIODES

SunMate

📥 Download Datasheet

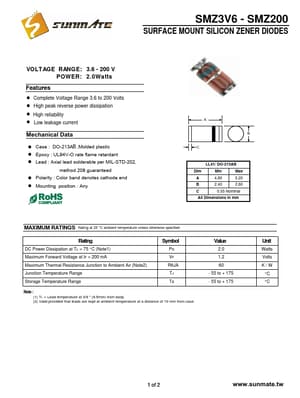

SMZ130 Datasheet Preview — This datasheet PDF includes multiple part numbers: SMZ130, SMZ3V6. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

Datasheet Details

Part number	SMZ130, SMZ3V6
Manufacturer	SunMate
File Size	397.20 KB
Description	SURFACE MOUNT SILICON ZENER DIODES
Datasheet	SMZ3V6-SunMate.pdf
Note	This datasheet PDF includes multiple part numbers: SMZ130, SMZ3V6. Please refer to the document for exact specifications by model.

SMZ130 Product details

Features

! Complete Voltage Range 3.6 to 200 Volts ! High peak reverse power dissipation ! High reliability ! Low leakage current Mechanical Data ! Case : DO-213AB ,Molded plastic ! Epoxy : UL94V-O rate flame retardant ! Lead : Axial lead solderable per MIL-STD-202, method 208 guaranteed ! Polarity : Color band denotes cathode end ! Mounting position : Any A B C LL41//DO-213AB Dim Min Max A 4.80 5.20 B 2.40 2.60 C 0.55 Nominal All Dimensions in mm.
