SZ103D - SURFACE MOUNT SILICON ZENER DIODES

SunMate

📥 Download Datasheet

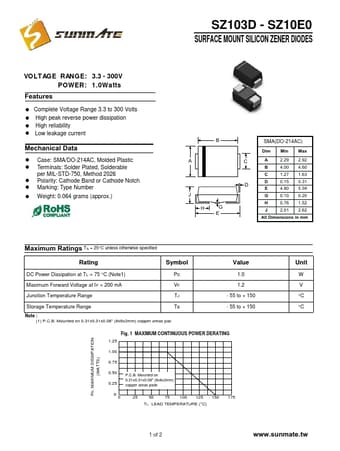

SZ103D Datasheet Preview — Preview of SZ103D PDF

datasheet Preview Page 2

Datasheet Details

Part number	SZ103D
Manufacturer	SunMate
File Size	132.09 KB
Description	SURFACE MOUNT SILICON ZENER DIODES
Datasheet	SZ103D-SunMate.pdf

SZ103D Product details

Features

! Complete Voltage Range 3.3 to 300 Volts ! High peak reverse power dissipation ! High reliability ! Low leakage current Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.064 grams (approx. ) B A J H G E SMA(DO-214AC) Dim Min Max C A 2.29 2.92 B 4.00 4.60 C 1.27 1.63 D D 0.15 0.31 E 4.80 5.59 G 0.10 0.20 H 0.76 1.52 J 2.01 2.6.
