SZ15D5 Datasheet - SunMate

SZ15D5 SILICON ZENER DIODES

SZ15D5 Features

* ! Complete Voltage Range 3.3 to 300 Volts ! High peak reverse power dissipation ! High reliability ! Low leakage current Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type

SZ15D5 Datasheet (141.42 KB)

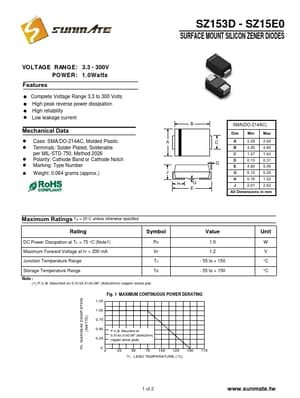

Preview of SZ15D5 PDF
SZ15D5 Datasheet Preview Page 2

Datasheet Details

Part number:

SZ15D5

Manufacturer:

SunMate

File Size:

141.42 KB

Description:

Silicon zener diodes.
