SZ253G, SZ252H Datasheet - SunMate

SZ253G SURFACE MOUNT SILICON ZENER DIODES

SZ253G Features

* ! Complete Voltage Range 2.7 to 200 Volts ! High peak reverse power dissipation ! High reliability ! Low leakage current Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type

SZ252H-SunMate.pdf

This datasheet PDF includes multiple part numbers: SZ253G, SZ252H. Please refer to the document for exact specifications by model.

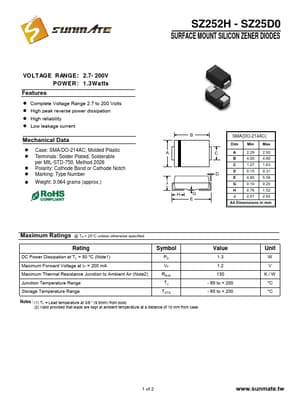

SZ253G Datasheet Preview Page 2

Datasheet Details

Part number:

SZ253G, SZ252H

Manufacturer:

SunMate

File Size:

204.86 KB

Description:

Surface mount silicon zener diodes.

Note:

This datasheet PDF includes multiple part numbers: SZ253G, SZ252H.
Please refer to the document for exact specifications by model.
