Z2SMA10, Z2SMA3V6, SURFACE MOUNT SILICON ZENER DIODES

Z2SMA3V6 - Z2SMA200 SURFACE MOUNT SILICON ZENER DIODES VOLTAGE RANGE: 3.6 - 200V POWER: 2.0Wa t t s .

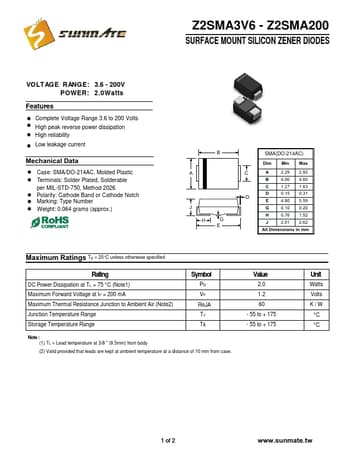

datasheet Preview Page 1 from Datasheet4u.com

Z2SMA3V6-SunMate.pdf

Z2SMA10 Datasheet Preview — This datasheet PDF includes multiple part numbers: Z2SMA10, Z2SMA3V6. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

Z2SMA10, Z2SMA3V6

Manufacturer:

SunMate

File Size:

110.32 KB

Description:

SURFACE MOUNT SILICON ZENER DIODES

Note:

This datasheet PDF includes multiple part numbers: Z2SMA10, Z2SMA3V6.
Please refer to the document for exact specifications by model.

Features

* ! Complete Voltage Range 3.6 to 200 Volts ! High peak reverse power dissipation ! High reliability ! Low leakage current Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type
