SPCA561A Datasheet - SunPlus

SPCA561A Integrated PC camera Chip

The SPCA561A provides a single chip solution to PC camera application. It includes a CIF format (352H x 288V) CMOS sensor and a backend processor for all image processing, image compression and data transaction units needed by a PC camera. The compressed data is transmitted to the PC side via the US.

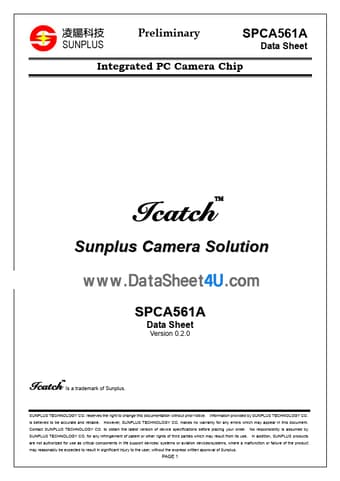

Preliminary SPCA561A Data Sheet Integrated PC Camera Chip Sunplus Camera Solution SPCA561A Data Sheet Version 0.2.0 Is a trademark of Sunplus. SUNPLUS TECHNOLOGY CO. reserves the right to change this documentation without prior notice. Information provided by SUNPLUS TECHNOLOGY CO. is believed to be accurate and reliable. However, SUNPLUS TECHNOLOGY CO. makes no warranty for any errors which may appear in this document. Contact SUNPLUS TECHNOLOGY CO. to obtain the latest version of devic.

SPCA561A Features

* 1. 2. 3. 4. Embedded 1/5-inch CMOS image sensor with 352Hx288V sensor array structure 7.8um x 7.8um active pixel photodiode-type with R, G, B, primary color filters. Programmable sensor controls: window size, gain, frame rate and ADC reference. Provide real-time and high-quality video formats :

SPCA561A Datasheet (133.80 KB)

SPCA561A Datasheet Preview — Preview of SPCA561A PDF

Datasheet Details

Part number:

SPCA561A

Manufacturer:

SunPlus

File Size:

133.80 KB

Description:

Integrated pc camera chip.
