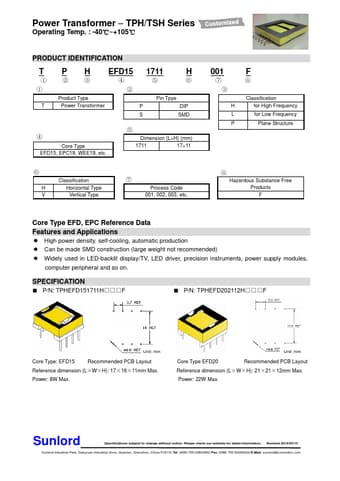

Power Transformer – TPH/TSH Series
Operating Temp. : -40℃~+105℃
PRODUCT IDENTIFICATION
TPH
①②③
EFD15 1711
④⑤
H
⑥
①②
Product Type T Power Transformer
Pin Tpye P DIP
S SMD
④
Core Type EFD15, EPC19, WEE19, etc.
⑤
Dimension (L×H) (mm)
1711
17×11
⑥
H V
Classification Horizontal Type Vertical Type
⑦
Process Code 001, 002, 003, etc.
001
⑦ ③
H L P
F
⑧
Classification for High Frequency for Low Frequency Plane Structure
⑧
Hazardous Substance Free Products F
Core Type EFD, EPC Reference Data Features and Applications
z High power density, self-cooling, automatic production z Can be made SMD construction (large weight not recommended) z Widely used in LED-backlit display/TV, LED driver, precision instruments, power supply modules,
computer peripheral and so on.
