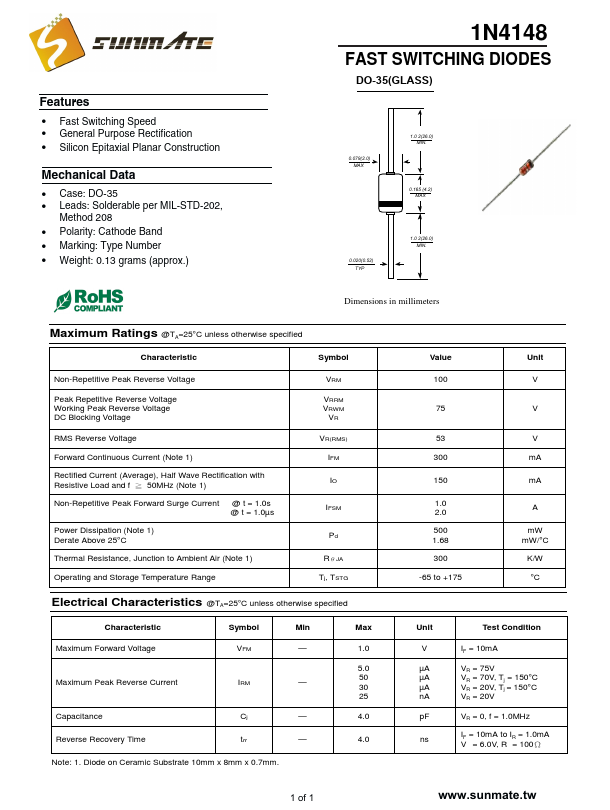

1N4148
Features
- Fast Switching Speed
- General Purpose Rectification
- Silicon Epitaxial Planar Construction
Mechanical Data
- Case: DO-35
- Leads: Solderable per MIL-STD-202,
Method 208
- Polarity: Cathode Band
- Marking: Type Number
- Weight: 0.13 grams (approx.)
FAST SWITCHING DIODES
DO-35(GLASS)
0.079(2.0) MAX
1.0 2(26.0) MIN.
0.165 (4.2) MAX
0.020(0.52) TYP
1.0 2(26.0) MIN.
Dimensions in millimeters
Maximum Ratings @TA=25°C unless otherwise specified
Characteristic
Symbol
Non-Repetitive Peak Reverse Voltage
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage
VRRM VRWM
RMS Reverse Voltage
Forward Continuous Current (Note 1)
Rectified Current (Average), Half Wave Rectification with Resistive Load and f 50MHz (Note 1)
Non-Repetitive Peak Forward Surge Current @ t = 1.0s @ t = 1.0µs
Power Dissipation (Note 1) Derate Above 25°C
Thermal Resistance, Junction to Ambient Air (Note 1)
Operating and Storage Temperature Range
VR(RMS) IFM...
