1N4154, 1N4149 SMALL SIGNAL SWITCHING DIODES

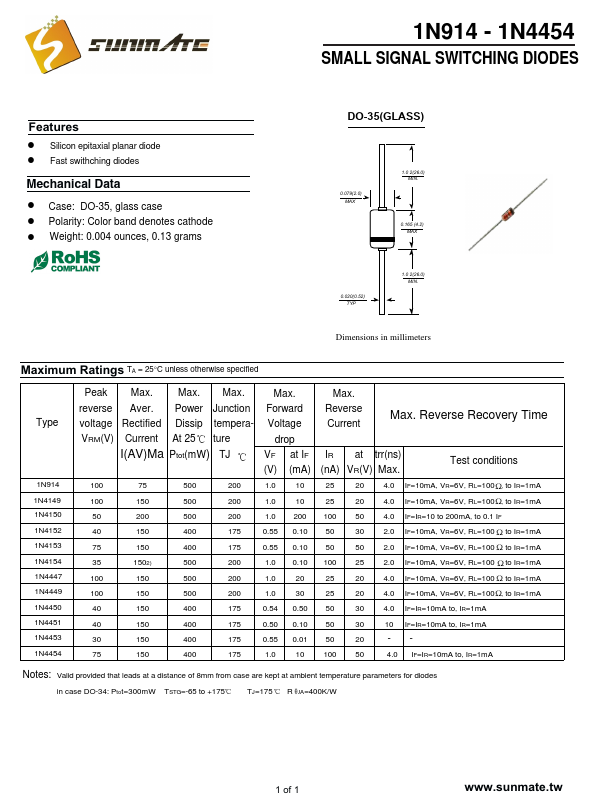

📥 Download Datasheet Datasheet Preview Page 1

Description

1N914 - 1N4454 SMALL SIGNAL SWITCHING DIODES .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N4154, 1N4149. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number
1N4154, 1N4149
Manufacturer
Sunmate
File Size
266.17 KB
Datasheet
1N4149-Sunmate.pdf
Description
SMALL SIGNAL SWITCHING DIODES
Note
This datasheet PDF includes multiple part numbers: 1N4154, 1N4149.
Please refer to the document for exact specifications by model.

Features

* ! Silicon epitaxial planar diode ! Fast swithching diodes Mechanical Data ! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.004 ounces, 0.13 grams DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Dimensions in millimeters
