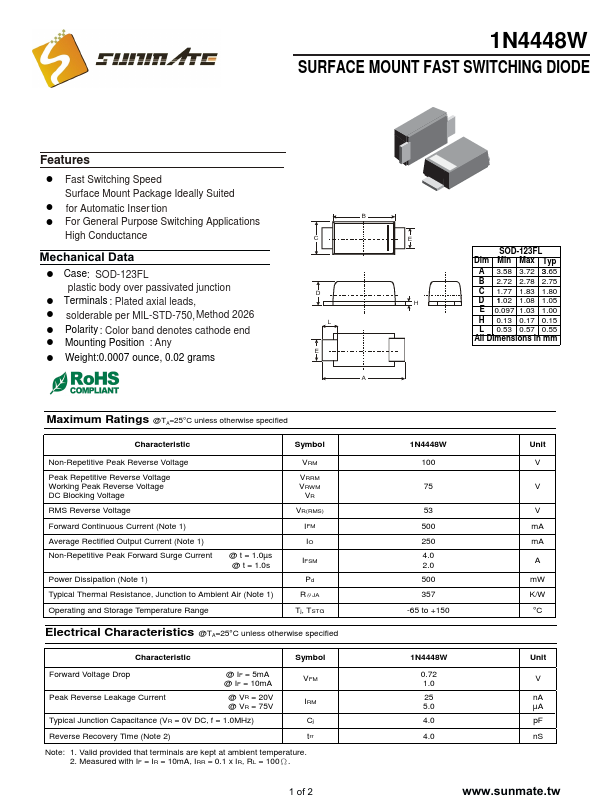

1N4448W
Features
! Fast Switching Speed Surface Mount Package Ideally Suited
! for Automatic Inser tion ! For General Purpose Switching Applications
High Conductance
Mechanical Data
! Case: SOD-123FL plastic body over passivated junction
! Terminals : Plated axial leads, ! solderable per MIL-STD-750,Method 2026 ! Polarity : Color band denotes cathode end ! Mounting Position : Any ! Weight:0.0007 ounce, 0.02 grams
Maximum Ratings @TA=25°C unless otherwise specified
Characteristic
Non-Repetitive Peak Reverse Voltage
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 1)
Average Rectified Output Current (Note 1)
Non-Repetitive Peak Forward Surge Current
@ t = 1.0µs @ t = 1.0s
Power Dissipation (Note 1)
Typical Thermal Resistance, Junction to Ambient Air (Note 1)
Operating and Storage Temperature Range
Symbol
VRM VRRM VRWM
VR VR(RMS)
IFM IO
IFSM
Pd RJA Tj, TSTG

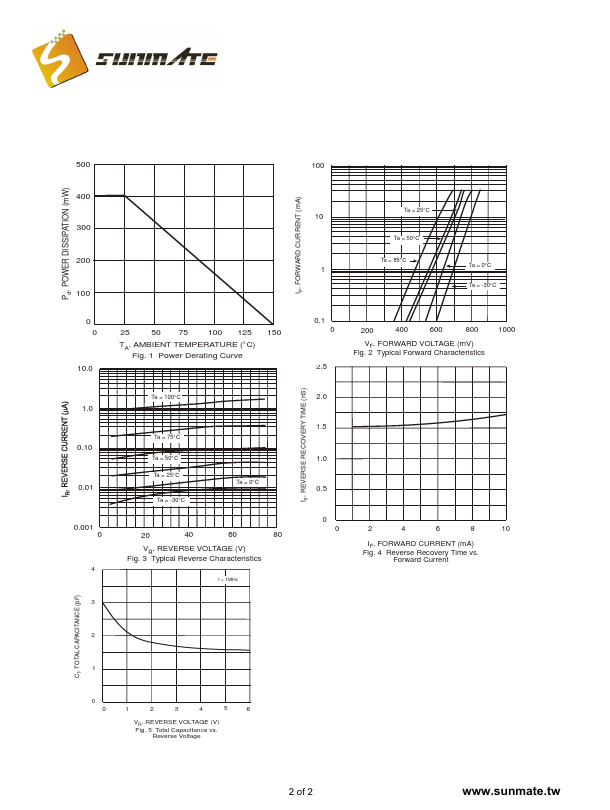

Electrical Characteristics...
