1N5060 - PLASTIC SILICON RECTIFIER DIODES

This page provides the datasheet information for the 1N5060, a member of the 1N5059 PLASTIC SILICON RECTIFIER DIODES family.

Datasheet Summary

Features

  • ! Low cost ! Diffused junction ! Glass passivated chips ! Low forward voltage drop ! High current capability ! Easily cleaned with Freon,Alcohol,Isopropanol and similar solvents Mechanical Data ! Case : DO-15 Molded plastic ! Epoxy : UL94V-O rate flame retardant ! Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed ! Polarity : Color band denotes cathode end ! Mounting position : Any ! Weight : 0.465 gram A B A C D DO-15 Dim Min Max A 25.40.
  • B 5.50 7.62 C.

📥 Download Datasheet

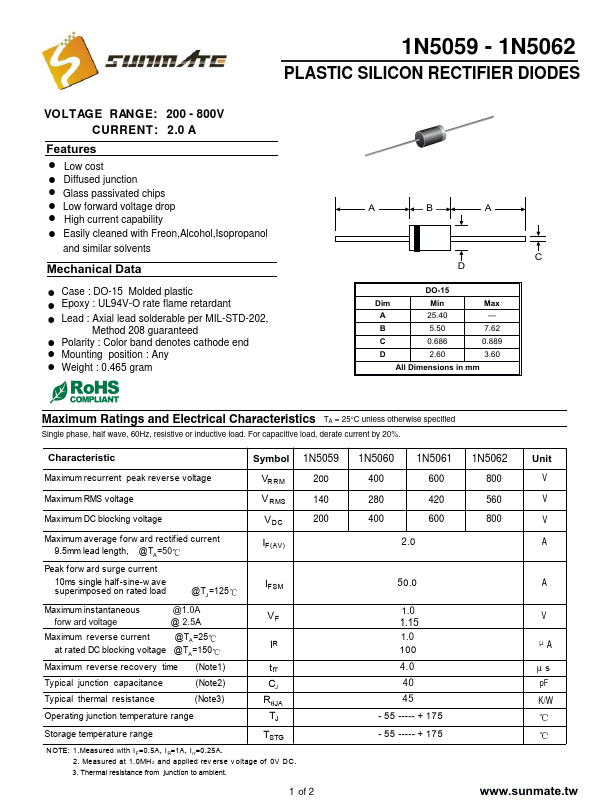

Datasheet preview – 1N5060

Datasheet Details

Part number 1N5060
Manufacturer Sunmate
File Size 596.37 KB
Description PLASTIC SILICON RECTIFIER DIODES
Datasheet download datasheet 1N5060 Datasheet

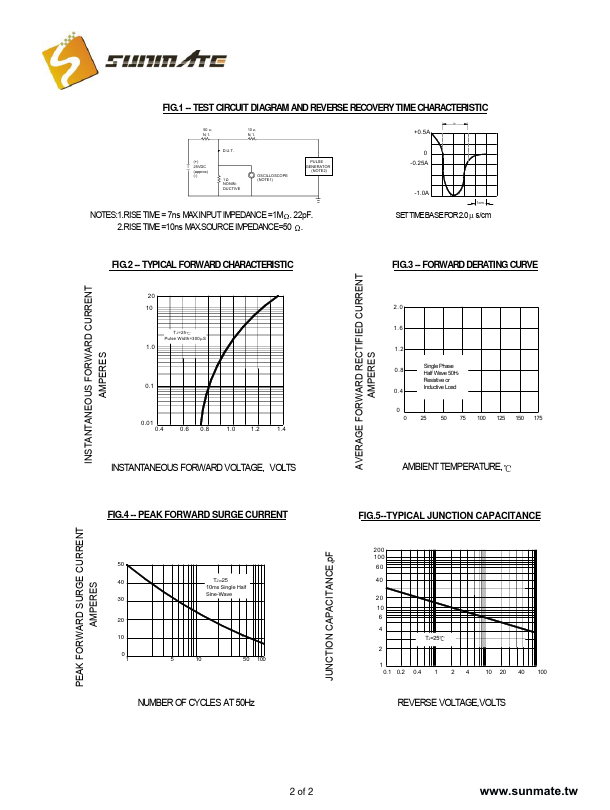

Additional preview pages of the 1N5060 datasheet.

📁 Similar Datasheet

  • 1N5060 - General Purpose Silicon Rectifier (NTE)
  • 1N5060 - Controlled avalanche rectifiers (NXP)
  • 1N5060 - Standard Avalanche Sinterglass Diode (Vishay)
  • 1N5060 - Plastic Silicon Rectifier (LGE)
  • 1N5060 - GLASS PASSIVATED SILICON RECTIFIERS (Central Semiconductor)
  • 1N5060 - STANDARD AVALANCHE DIODE (Digitron Semiconductors)
  • 1N5060 - Silicon Rectifiers (Diotec Semiconductor)
  • 1N5060 - GLASS PASSIVATED JUNCTION RECTIFIER (General Semiconductor)
  • 1N5060GP - Glass Passivated Junction Plastic Rectifier (Vishay)
  • 1N5060GP - GLASS PASSIVATED JUNCTION RECTIFIER (General Semiconductor)
Other Datasheets by Sunmate

Full PDF Text Transcription

Click to expand full text
1N5059 - 1N5062 PLASTIC SILICON RECTIFIER DIODES VOLTAGE RANGE: 200 - 8 00V CURRENT: 2.0 A Features ! Low cost ! Diffused junction ! Glass passivated chips ! Low forward voltage drop ! High current capability ! Easily cleaned with Freon,Alcohol,Isopropanol and similar solvents Mechanical Data ! Case : DO-15 Molded plastic ! Epoxy : UL94V-O rate flame retardant ! Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed ! Polarity : Color band denotes cathode end ! Mounting position : Any ! Weight : 0.465 gram A B A C D DO-15 Dim Min Max A 25.40 — B 5.50 7.62 C 0.686 0.889 D 2.60 3.60 All Dimensions in mm Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load.
