1N5062, 1N5059 PLASTIC SILICON RECTIFIER DIODES

Sunmate

Description

1N5059 - 1N5062 PLASTIC SILICON RECTIFIER DIODES VOLTAGE RANGE: 200 - 8 00V CURRENT: 2.0 A .

📥 Download Datasheet

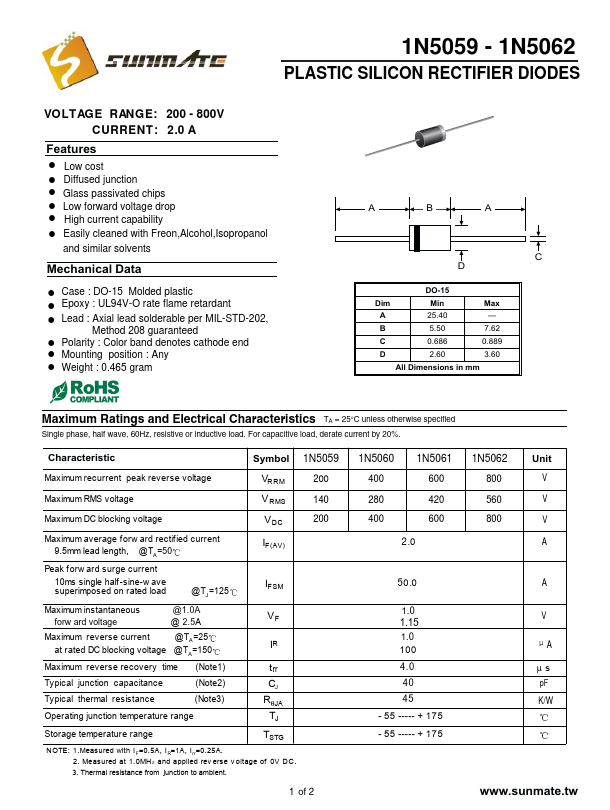

1N5062 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N5062, 1N5059. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 1N5062, 1N5059
Manufacturer: Sunmate
File Size: 596.37 KB
Datasheet: 1N5059-Sunmate.pdf
Description: PLASTIC SILICON RECTIFIER DIODES
Note: This datasheet PDF includes multiple part numbers: 1N5062, 1N5059.
Please refer to the document for exact specifications by model.

Features

* ! Low cost ! Diffused junction ! Glass passivated chips ! Low forward voltage drop ! High current capability ! Easily cleaned with Freon,Alcohol,Isopropanol and similar solvents Mechanical Data ! Case : DO-15 Molded plastic ! Epoxy : UL94V-O rate flame retardant ! Lead : Axial lead solderable per MI
