1N5392 - AXIAL LEADED SILICON RECTIFIER DIODES

Product Overview

Sunmate

Part number	1N5392
Manufacturer	Sunmate
File Size	285.09 KB
Description	AXIAL LEADED SILICON RECTIFIER DIODES
Datasheet	1N5392 Datasheet
Note	This datasheet PDF includes multiple part numbers: 1N5392, 1N5391. Please refer to the document for exact specifications by model.

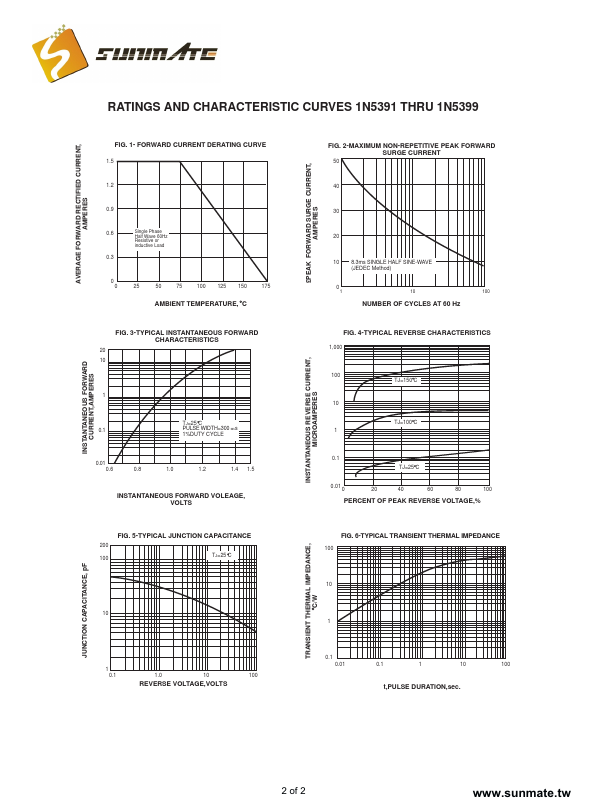

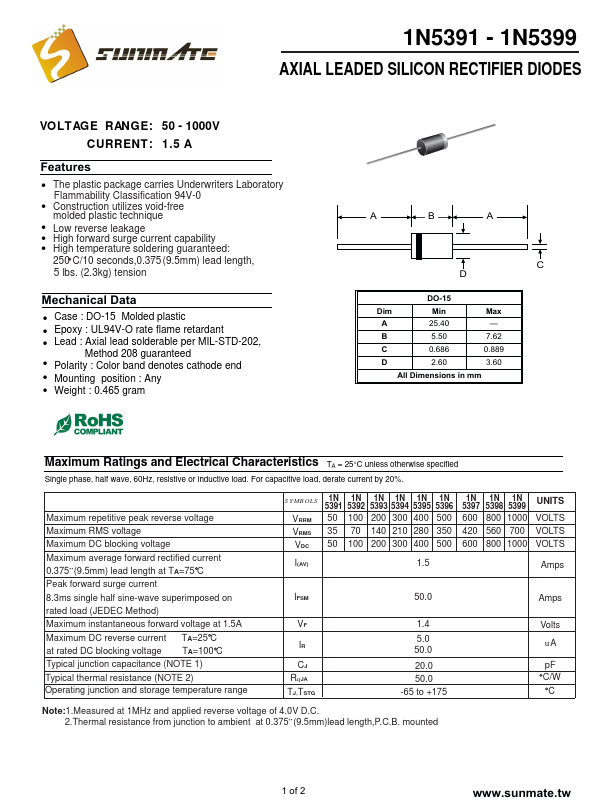

Additional preview pages of the 1N5392 datasheet.

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0.
Construction utilizes void-free molded plastic technique.
Low reverse leakage.
High forward surge current capability.
High temperature soldering guaranteed: 250 C/10 seconds,0.37” 5 (9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data.
Case : DO-15 Molded plastic.
Epoxy : UL94V-O rate flame retardant.
Lead : Axial lead solderable per MIL-STD-202, Method 208 guara.
