1N5404, 1N5400 - AXIAL LEADED RECTIFIER DIODES

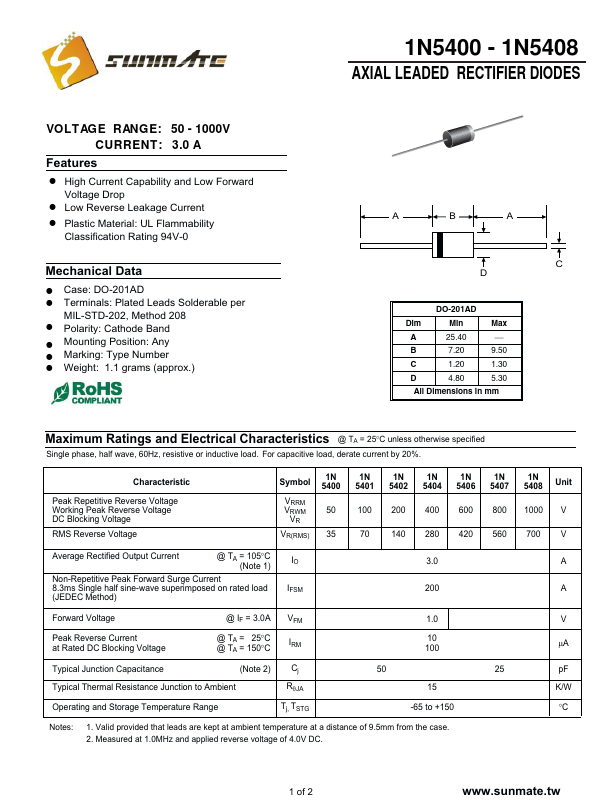

1N5404 Description

1N5400 - 1N5408 AXIAL LEADED RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 3.0 A .

1N5404 Features

* ! High Current Capability and Low Forward Voltage Drop ! Low Reverse Leakage Current ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: DO-201AD ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Mounting Position: Any ! M

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N5404, 1N5400. Please refer to the document for exact specifications by model.

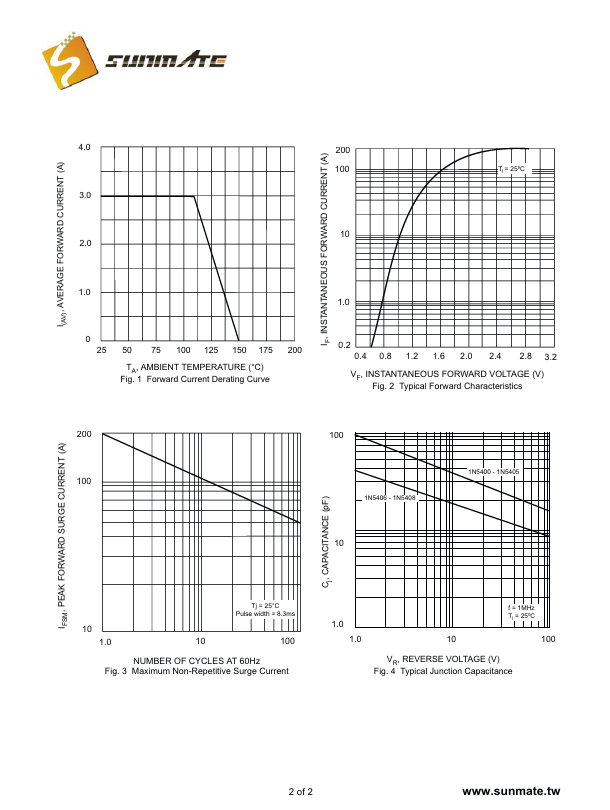

datasheet Preview Page 2

Datasheet Details

Part number
1N5404, 1N5400
Manufacturer
Sunmate
File Size
123.21 KB
Datasheet
1N5400-Sunmate.pdf
Description
AXIAL LEADED RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: 1N5404, 1N5400.
Please refer to the document for exact specifications by model.
