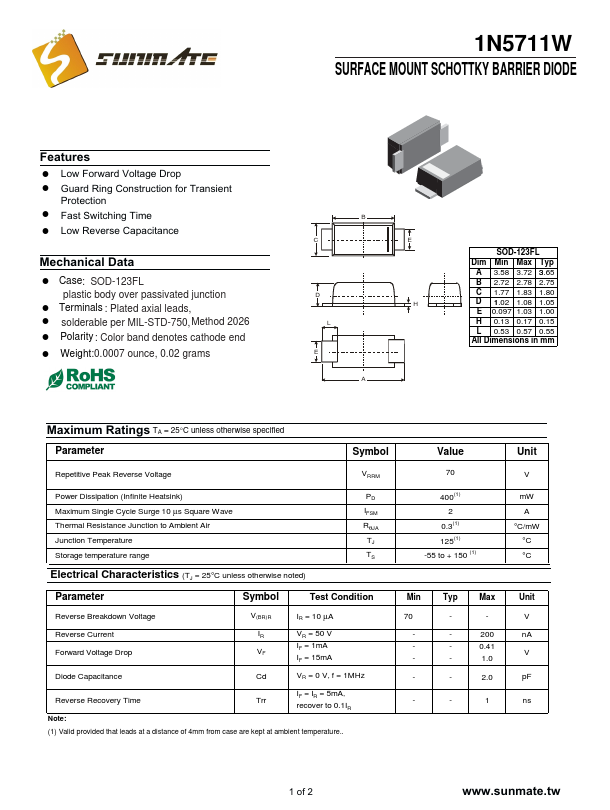

1N5711W
Features
! Low Forward Voltage Drop ! Guard Ring Construction for Transient
Protection ! Fast Switching Time ! Low Reverse Capacitance
Mechanical Data
! Case: SOD-123FL plastic body over passivated junction
! Terminals : Plated axial leads, ! solderable per MIL-STD-750,Method 2026 ! Polarity : Color band denotes cathode end ! Weight:0.0007 ounce, 0.02 grams
SOD-123FL Dim Min Max Typ
A 3.58 3.72 3.65 B 2.72 2.78 2.75 C 1.77 1.83 1.80 D 1.02 1.08 1.05 E 0.097 1.03 1.00 H 0.13 0.17 0.15 L 0.53 0.57 0.55 All Dimensions in mm
Maximum Ratings TA = 25°C unless otherwise specified
Parameter
Symbol
Value
Repetitive Peak Reverse Voltage
VRRM
Power Dissipation (Infinite Heatsink) Maximum Single Cycle Surge 10 µs Square Wave Thermal Resistance Junction to Ambient Air Junction Temperature Storage temperature range
Electrical Characteristics (TJ = 25°C unless otherwise noted)
PD IFSM RθJA TJ TS
400(1) 2
0.3(1) 125(1) -55 to + 150 (1)
Parameter
Symbol
Test...
