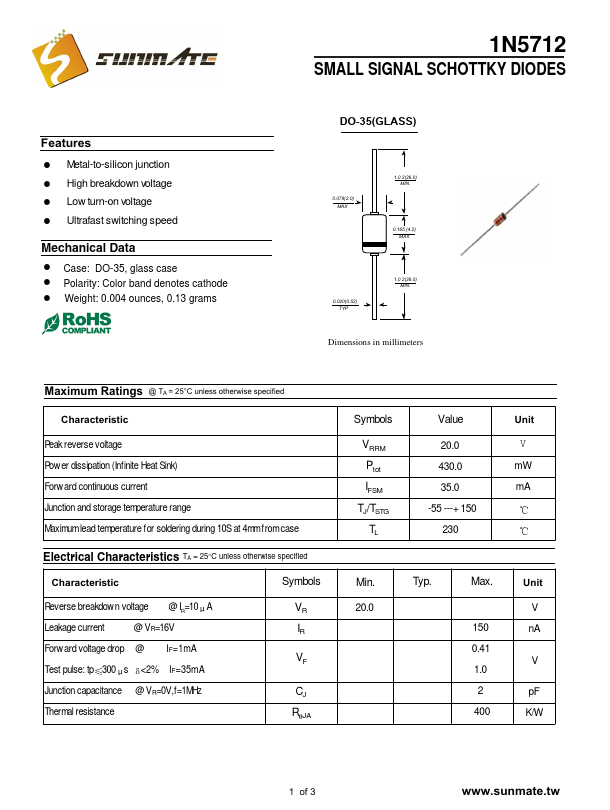

1N5712
Features
! Metal-to-silicon junction ! High breakdown voltage ! Low turn-on voltage ! Ultrafast switching speed
Mechanical Data
! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.004 ounces, 0.13 grams
DO-35(GLASS)
0.079(2.0) MAX
1.0 2(26.0) MIN.
0.165 (4.2) MAX
0.020(0.52) TYP
1.0 2(26.0) MIN.
Dimensions in millimeters
Maximum Ratings @ TA = 25°C unless otherwise specified
Characteristic Peak reverse voltage Pow er dissipation (Infinite Heat Sink) Forw ard continuous current Junction and storage temperature range Maximumlead temperature for soldering during 10S at 4mmfromcase
Electrical Characteristics TA = 25°C unless otherwise specified
Characteristic
Symbols
Reverse breakdown voltage @ IR=10 A
Leakage current
@ VR=16V
Forw ard voltage drop @ IF=1m A
Test pulse: tp 300 s <2% IF=35m A
Junction capacitance @ VR=0V,f=1MHz
Thermal resistance
VR IR VF
CJ RθJA
Symbols
Value
Unit
VRRM
Ptot
430.0 m W
IFSM
35.0 m A
TJ/TSTG c-55...
