1N60SW, 1N60PW - SCHOTTKY BARRIER DIODE

Sunmate

Datasheet Details

Part number	1N60SW, 1N60PW
Manufacturer	Sunmate
File Size	668.08 KB
Description	SCHOTTKY BARRIER DIODE
Datasheet	1N60PW-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: 1N60SW, 1N60PW. Please refer to the document for exact specifications by model.

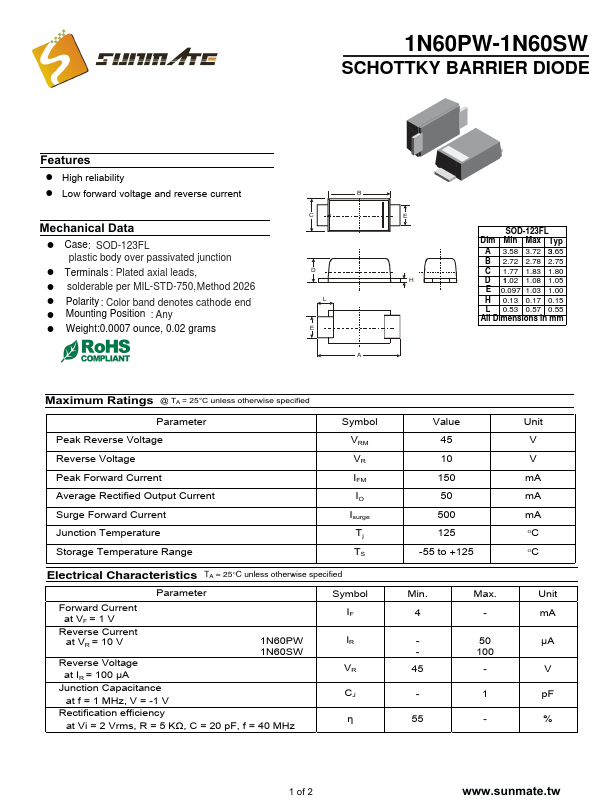

! High reliability ! Low forward voltage and reverse current Mechanical Data ! Case: SOD-123FL plastic body over passivated junction ! Terminals : Plated axial leads, ! solderable per MIL-STD-750,Method 2026 ! Polarity : Color band denotes cathode end ! Mounting Position : Any ! Weight:0.0007 ounce, 0.02 grams B C E D H L E A SOD-123FL Dim Min Max Typ A 3.58 3.72 3.65 B 2.72 2.78 2.75 C 1.77 1.83 1.80 D 1.02 1.08 1.05 E 0.097 1.03 1.00 H 0.13 0.17 0.15 L 0.53 0.57 0.55 All Dimensions in mm.
