1SMA10A - SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE

Product Overview

Sunmate

Part number	1SMA10A
Manufacturer	Sunmate
File Size	720.41 KB
Description	SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE
Datasheet	1SMA10A Datasheet
Note	This datasheet PDF includes multiple part numbers: 1SMA10A, 1SMA5.0. Please refer to the document for exact specifications by model.

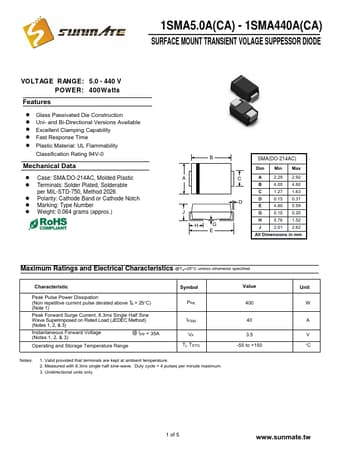

Additional preview pages of the 1SMA10A datasheet.

! Glass Passivated Die Construction ! Uni- and Bi-Directional Versions Available ! Excellent Clamping Capability ! Fast Response Time ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.064 grams (approx. ) B A J H G E SMA(DO-214AC) Dim Min Max C A 2.29 2.92 B 4.00 4.60 C 1.27 1.63 D D.
