1SMAF4746A - SURFACE MOUNT SILICON ZENER DIODES

Download the 1SMAF4746A datasheet PDF. This datasheet also covers the 1SMAF4728A variant, as both devices belong to the same surface mount silicon zener diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • ! Complete voltage range 3.3 to 100 volts ! High peak reverse power dissipation ! High reliability ! Low leakage current ! Standard zener voltage tolerance is ± 5 % Mechanical Data ! Case: SMAF,Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity:Color band denotes cathode end ! Mounting Position:Any ! Weight:0.0018 ounce, 0.064 grams B CE D L E A H SMAF Dim Min Max Typ A 4.75 4.85 4.80 B 3.68 3.72 3.70 C 2.57 2.63 2.60 D 0.097 1.03 1.00 E 1.38 1.42.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1SMAF4728A-Sunmate.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1SMAF4746A
Manufacturer Sunmate
File Size 309.78 KB
Description SURFACE MOUNT SILICON ZENER DIODES
Datasheet download datasheet 1SMAF4746A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1SMAF4746A Silicon Planar Zener Diodes Jingdao Microelectronics
1SMAF4746A Silicon Planar Zener Diodes BLUE ROCKET ELECTRONICS
1SMAF4740A Silicon Planar Zener Diodes Jingdao Microelectronics
1SMAF4740A Silicon Planar Zener Diodes BLUE ROCKET ELECTRONICS
1SMAF4741A Silicon Planar Zener Diodes Jingdao Microelectronics

Other Datasheets by Sunmate

Part Number Description
1SMAF4740A SURFACE MOUNT SILICON ZENER DIODES
1SMAF4741A SURFACE MOUNT SILICON ZENER DIODES
1SMAF4742A SURFACE MOUNT SILICON ZENER DIODES
1SMAF4743A SURFACE MOUNT SILICON ZENER DIODES
1SMAF4744A SURFACE MOUNT SILICON ZENER DIODES

Full PDF Text Transcription

Click to expand full text

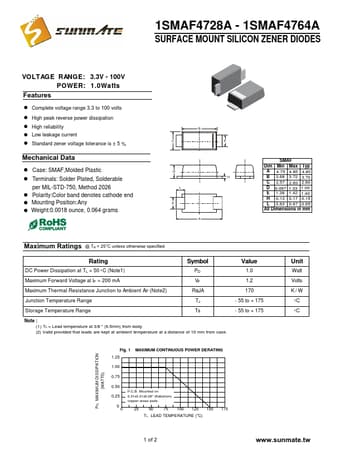

1SMAF4728A - 1SMAF4764A SURFACE MOUNT SILICON ZENER DIODES VOLTAGE RANGE: 3.3V - 100V POWER: 1.0Wa t t s Features ! Complete voltage range 3.3 to 100 volts ! High peak reverse power dissipation ! High reliability ! Low leakage current ! Standard zener voltage tolerance is ± 5 % Mechanical Data ! Case: SMAF,Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity:Color band denotes cathode end ! Mounting Position:Any ! Weight:0.0018 ounce, 0.064 grams B CE D L E A H SMAF Dim Min Max Typ A 4.75 4.85 4.80 B 3.68 3.72 3.70 C 2.57 2.63 2.60 D 0.097 1.03 1.00 E 1.38 1.42 1.40 H 0.13 0.17 0.15 L 0.63 0.67 0.
