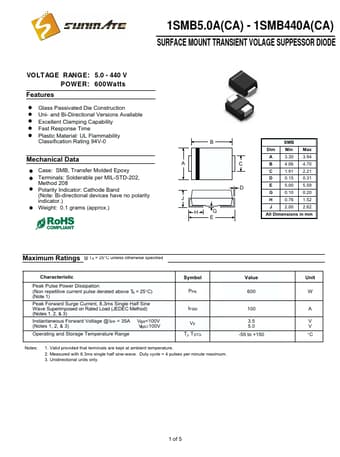

1SMB200CA, 1SMB5.0 - SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE

Sunmate

Datasheet Details

Part number	1SMB200CA, 1SMB5.0
Manufacturer	Sunmate
File Size	861.71 KB
Description	SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE
Datasheet	1SMB5.0-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: 1SMB200CA, 1SMB5.0. Please refer to the document for exact specifications by model.

! Glass Passivated Die Construction ! Uni- and Bi-Directional Versions Available ! Excellent Clamping Capability ! Fast Response Time ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: SMB, Transfer Molded Epoxy ! Terminals: Solderable per MIL-STD-202, Method 208 ! Polarity Indicator: Cathode Band (Note: Bi-directional devices have no polarity indicator. ) ! Weight: 0.1 grams (approx. ) B SMB Dim Min Max A 3.30 3.94 A C B 4.06 4.70 C 1.91 2.21 D 0.15 0.31.
