1SMC12 - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Product Overview

Sunmate

Part number	1SMC12
Manufacturer	Sunmate
File Size	714.64 KB
Description	SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	1SMC12 Datasheet
Note	This datasheet PDF includes multiple part numbers: 1SMC12, 1SMC5.0. Please refer to the document for exact specifications by model.

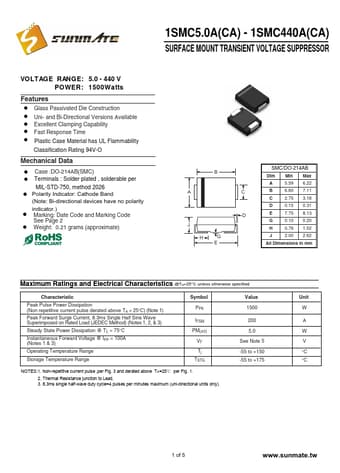

Additional preview pages of the 1SMC12 datasheet.

! Glass Passivated Die Construction ! Uni- and Bi-Directional Versions Available ! Excellent Clamping Capability ! Fast Response Time ! Plastic Case Material has UL Flammability Classification Rating 94V-O Mechanical Data ! Case :DO-214AB(SMC) ! Terminals : Solder plated , solderable per MIL-STD-750, method 2026 ! Polarity Indicator: Cathode Band (Note: Bi-directional devices have no polarity indicator. ) ! Marking: Date Code and Marking Code See Page 2 ! Weight: 0.21 grams (approximate) SMC/DO-.
