1SS147, 1SS141 - AXIAL LEADED FAST SWITCHING DIODE

Sunmate

Datasheet Details

Part number	1SS147, 1SS141
Manufacturer	Sunmate
File Size	790.91 KB
Description	AXIAL LEADED FAST SWITCHING DIODE
Datasheet	1SS141-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: 1SS147, 1SS141. Please refer to the document for exact specifications by model.

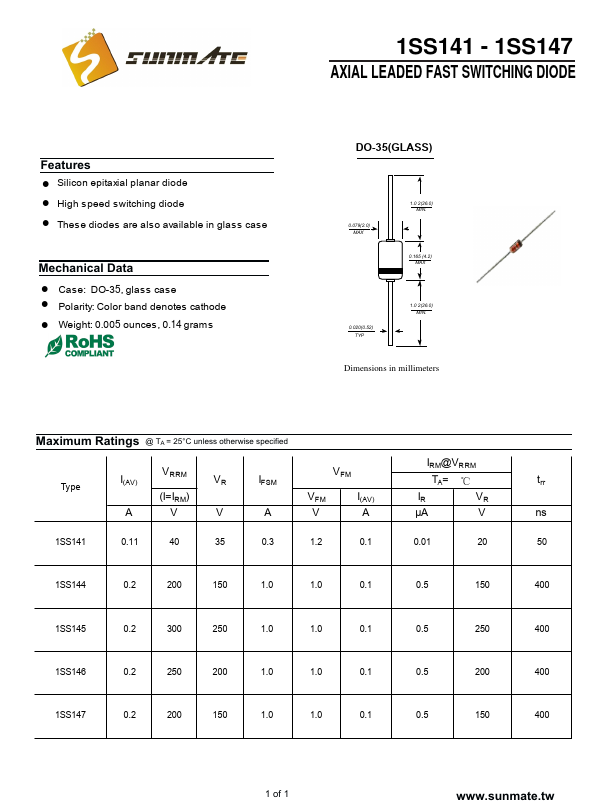

! Silicon epitaxial planar diode ! High speed switching diode ! These diodes are also available in glass case Mechanical Data ! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.005 ounces, 0.14 grams DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Dimensions in millimeters Maximum Ratings @ TA = 25°C unless otherwise specified Type I(AV) VRRM VR IFSM VFM IRM@VRRM TA= trr (I=IRM) VFM I(AV) IR VR A V V.
