1SS165 - SCHOTTKY BARRIER DIODES

Sunmate

📥 Download Datasheet

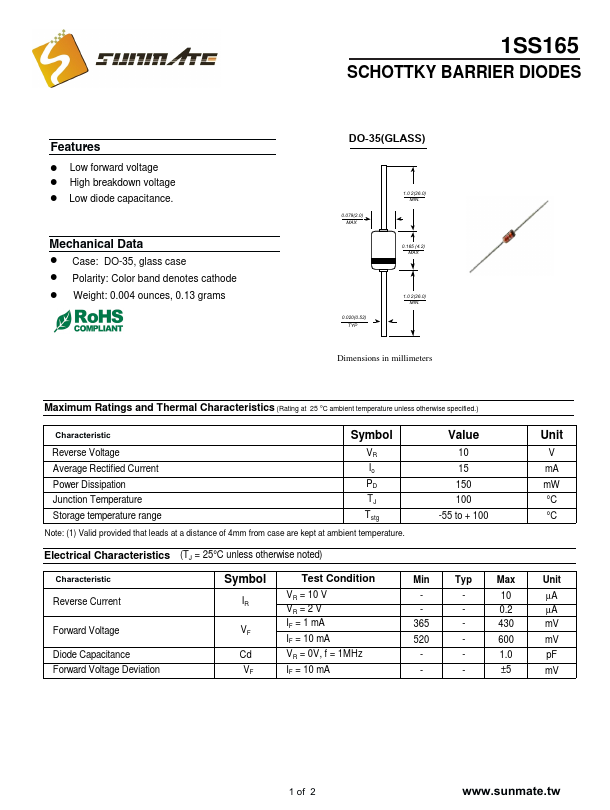

1SS165 Datasheet Preview — Preview of 1SS165 PDF

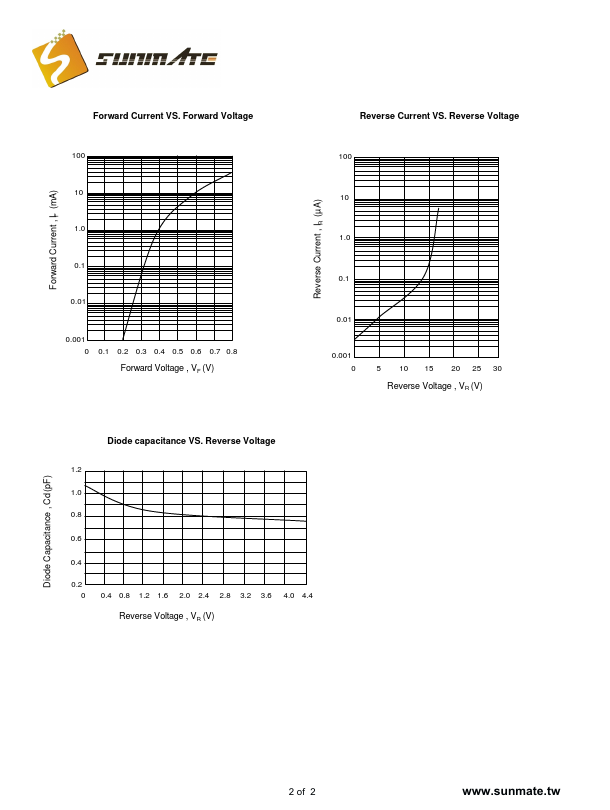

datasheet Preview Page 2

Datasheet Details

Part number	1SS165
Manufacturer	Sunmate
File Size	440.04 KB
Description	SCHOTTKY BARRIER DIODES
Datasheet	1SS165-Sunmate.pdf

1SS165 Product details

Features

! Low forward voltage ! High breakdown voltage ! Low diode capacitance. Mechanical Data ! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.004 ounces, 0.13 grams DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Dimensions in millimeters Maximum Ratings and Thermal Characteristics (Rating at 25 °C ambient temperature unless otherwise specified. ) Characteristic Symbol Reverse Voltage VR Average Rectified Current Io.
