1SS176 AXIAL LEADED FAST SWITCHING DIODE

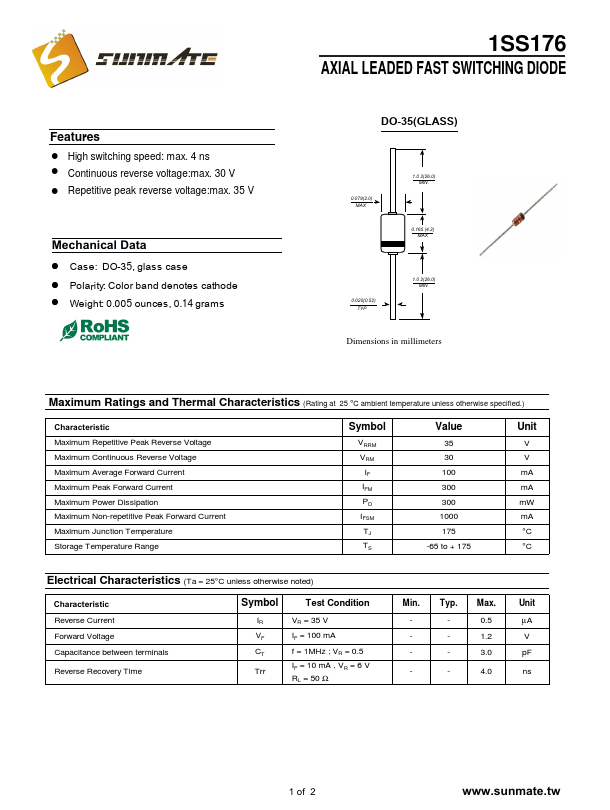

📥 Download Datasheet Datasheet Preview Page 1

Description

.

📥 Download Datasheet

Preview of 1SS176 PDF

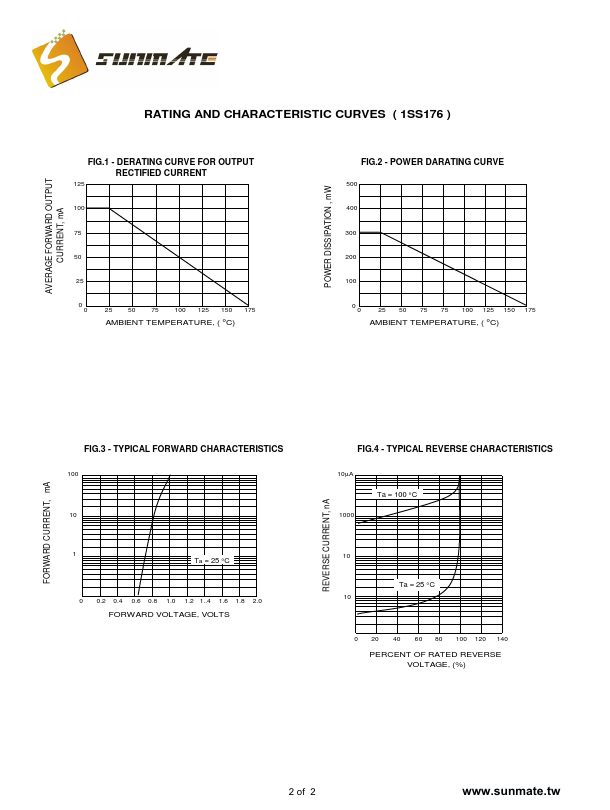

datasheet Preview Page 2

Datasheet Specifications

Part number
1SS176
Manufacturer
Sunmate
File Size
1.30 MB
Datasheet
1SS176-Sunmate.pdf
Description
AXIAL LEADED FAST SWITCHING DIODE

Features

* ! High switching speed: max. 4 ns ! Continuous reverse voltage:max. 30 V ! Repetitive peak reverse voltage:max. 35 V Mechanical Data ! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.005 ounces, 0.14 grams 1SS176 AXIAL LEADED FAST SWITCHING DIODE DO-35(GLASS) 0.079(2.0)
