2CL71 High voltage diode

Sunmate

Description

VOLTAGE RANGE: 8 KV CURRENT: 5.0 m A .

📥 Download Datasheet

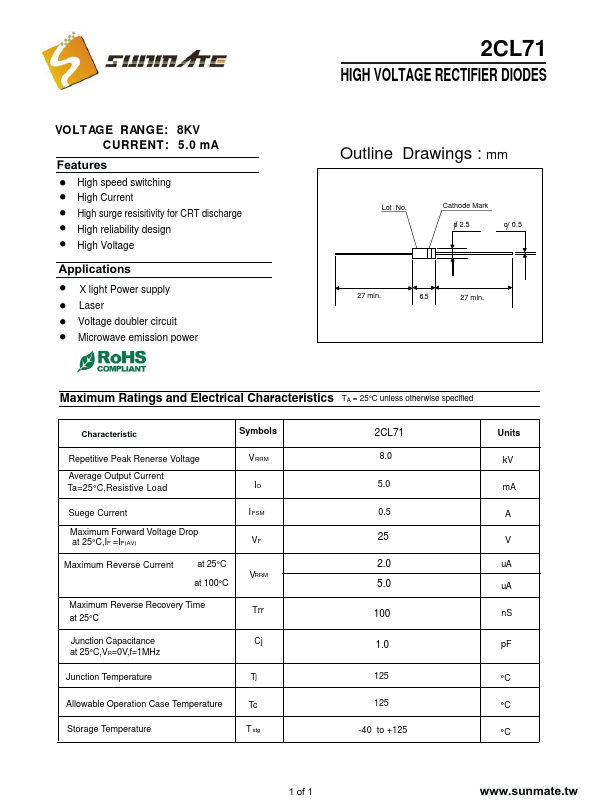

2CL71 Datasheet Preview — Preview of 2CL71 PDF

Datasheet Specifications

Part number: 2CL71
Manufacturer: Sunmate
File Size: 72.74 KB
Datasheet: 2CL71-Sunmate.pdf
Description: High voltage diode

Features

* High speed switching
* High Current
* High surge resisitivity for CRT discharge
* High reliability design

Applications

* X light Power supply
* Laser
* Voltage doubler circuit
* Microwave emission power 2CL71 HIGH VOLTAGE RECTIFIER DIODES Outline Drawings : mm Lot No. Cathode Mark o 2.5 o 0.5 27 min. 6.5 27 min. Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specif
