2CL73 - HIGH VOLTAGE RECTIFIER DIODES

2CL73 Description

VOLTAGE RANGE: 12 KV CURRENT: 5.0 m A .

2CL73 Features

* High speed switching
* High Current
* High surge resisitivity for CRT discharge
* High reliability design

2CL73 Applications

* X light Power supply
* Laser
* Voltage doubler circuit
* Microwave emission power 2CL73 HIGH VOLTAGE RECTIFIER DIODES Outline Drawings : mm Lot No. Cathode Mark o 3.0 o 0.6 27 min. 10 27 min. Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specif

📥 Download Datasheet

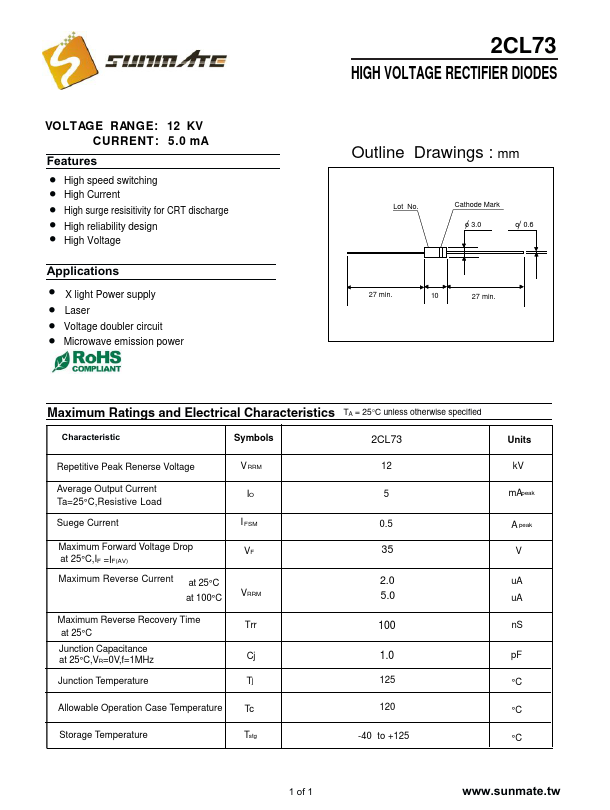

Preview of 2CL73 PDF

Datasheet Details

Part number
2CL73
Manufacturer
Sunmate
File Size
71.60 KB
Datasheet
2CL73-Sunmate.pdf
Description
HIGH VOLTAGE RECTIFIER DIODES
