2CL77 - HIGH VOLTAGE RECTIFIER DIODES

2CL77 Description

VOLTAGE RANGE: 20KV CURRENT: 5.0 m A .

2CL77 Features

* High speed switching
* High Current
* High surge resisitivity for CRT discharge
* High reliability design

2CL77 Applications

* X light Power supply
* Laser
* Voltage doubler circuit

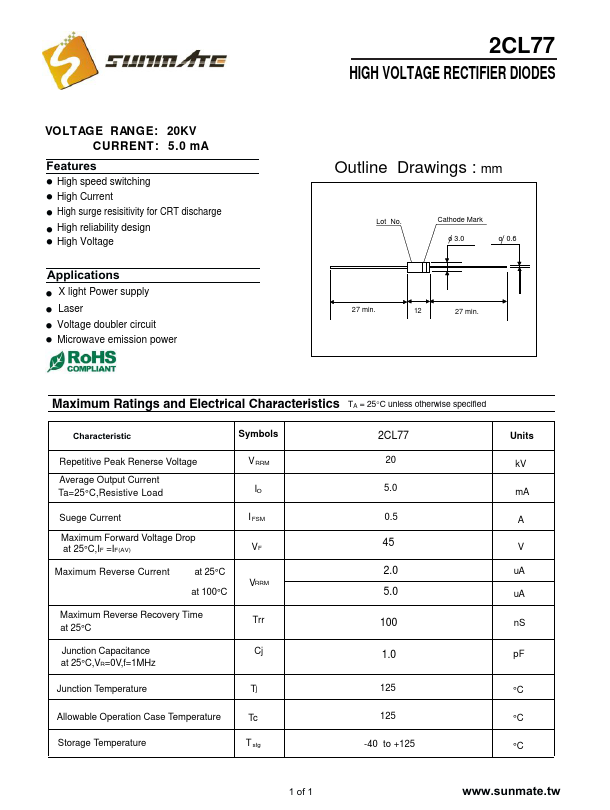

* Microwave emission power 2CL77 HIGH VOLTAGE RECTIFIER DIODES Outline Drawings : mm Lot No. Cathode Mark o 3.0 o 0.6 27 min. 12 27 min. Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specif
