2CL79 HIGH VOLTAGE RECTIFIER DIODES

📥 Download Datasheet Datasheet Preview Page 1

Description

VOLTAGE RANGE: 25KV CURRENT: 5.0m A .

📥 Download Datasheet

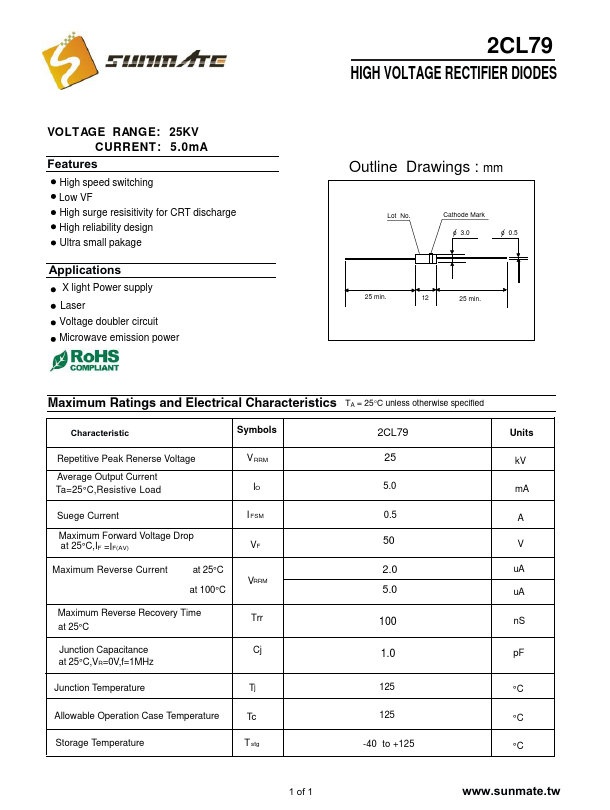

Preview of 2CL79 PDF

Datasheet Specifications

Part number
2CL79
Manufacturer
Sunmate
File Size
73.07 KB
Datasheet
2CL79-Sunmate.pdf
Description
HIGH VOLTAGE RECTIFIER DIODES

Applications

* X light Power supply Laser Voltage doubler circuit Microwave emission power 2CL79 HIGH VOLTAGE RECTIFIER DIODES Outline Drawings : mm Lot No. Cathode Mark o 3.0 o 0.5 25 min. 12 25 min. Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified Characteristic Symb
