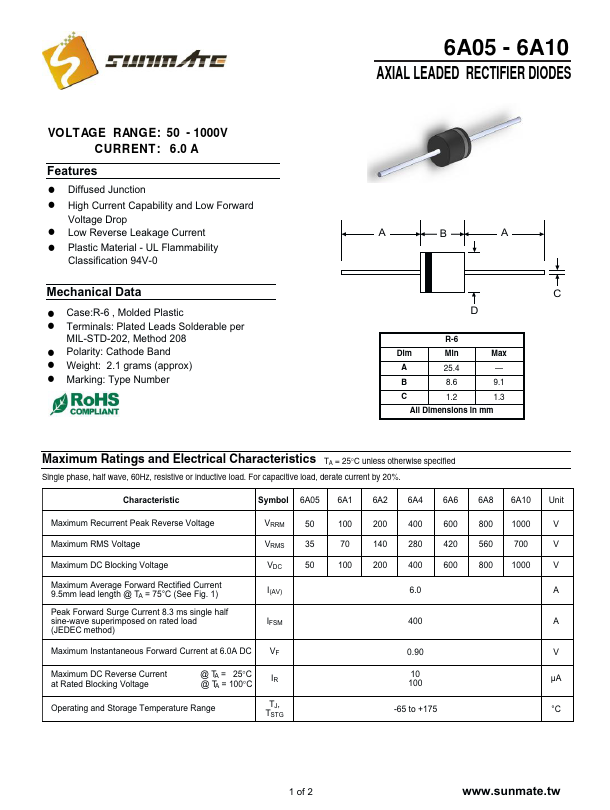

! Diffused Junction ! High Current Capability and Low Forward
Voltage Drop ! Low Reverse Leakage Current ! Plastic Material - UL Flammability
Classification 94V-0
Mechanical Data
! Case:R-6 , Molded Plastic ! Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 2.1 grams (approx) ! Marking: Type Number
A
B
A
C D
R-6
Dim
Min
Max
A
25.4.
B
8.6
9.1
C
1.2
1.3
All Dimensions in mm
Maximum Ratings and Electrical Characteristics T.
