6A8 - AXIAL LEADED RECTIFIER DIODES

Sunmate

Datasheet Details

Part number	6A8
Manufacturer	Sunmate
File Size	113.50 KB
Description	AXIAL LEADED RECTIFIER DIODES
Datasheet	6A8-Sunmate.pdf

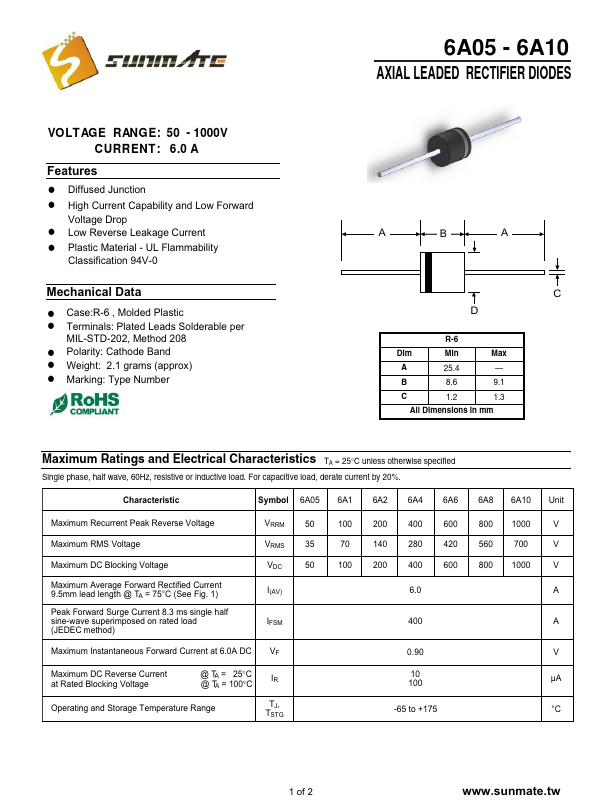

! Diffused Junction ! High Current Capability and Low Forward Voltage Drop ! Low Reverse Leakage Current ! Plastic Material - UL Flammability Classification 94V-0 Mechanical Data ! Case:R-6 , Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 2.1 grams (approx) ! Marking: Type Number A B A C D R-6 Dim Min Max A 25.4.
B 8.6 9.1 C 1.2 1.3 All Dimensions in mm Maximum Ratings and Electrical Characteristics T.
