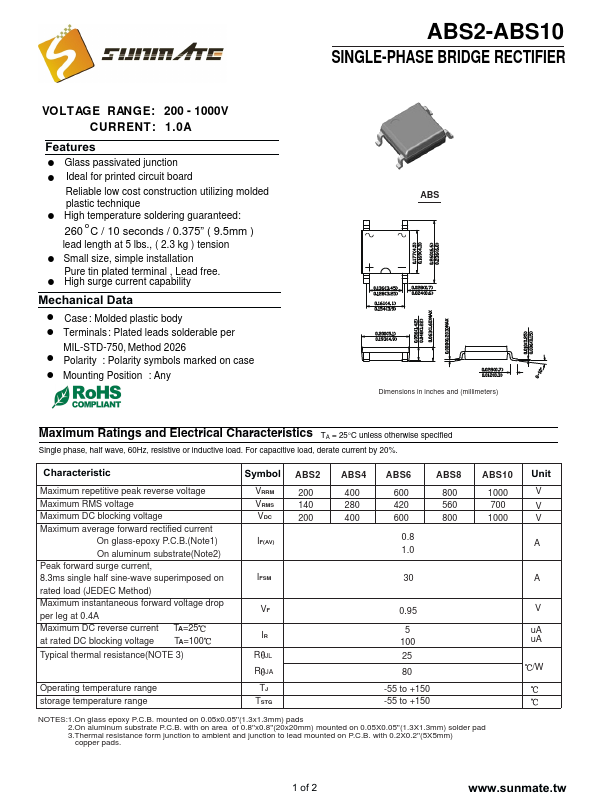

ABS2
Features
! Glass passivated junction ! Ideal for printed circuit board
Reliable low cost construction utilizing molded plastic technique ! High temperature soldering guaranteed:
260 o C / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs., ( 2.3 kg ) tension ! Small size, simple installation
Pure tin plated terminal , Lead free. ! High surge current capability
Mechanical Data
! Case : Molded plastic body ! Terminals: Plated leads solderable per
MIL-STD-750, Method 2026 ! Polarity : Polarity symbols marked on case ! Mounting Position : Any
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Characteristic
Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current
On glass-epoxy P.C.B.(Note1) On aluminum substrate(Note2) Peak forward...
