BAL99 SURFACE MOUNT SWITCHING DIODE

Sunmate

Description

BAL99 SURFACE MOUNT SWITCHING DIODE .

📥 Download Datasheet

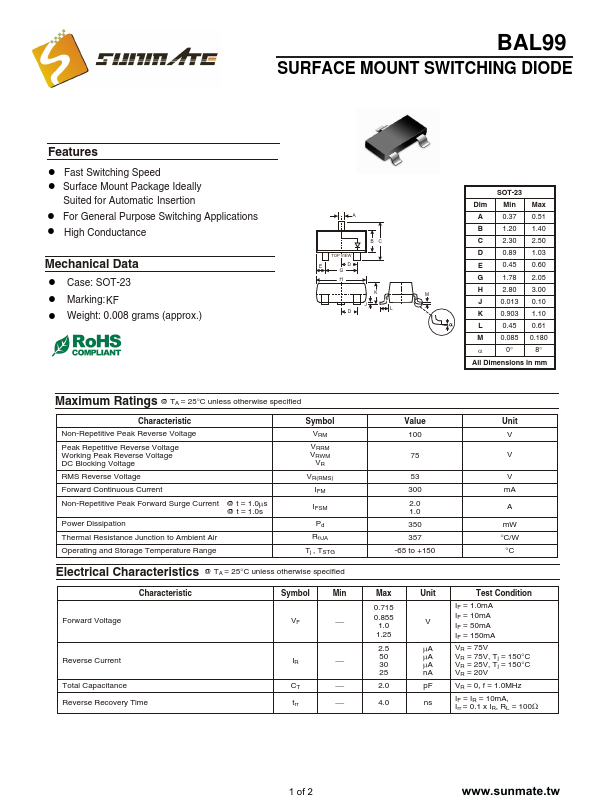

BAL99 Datasheet Preview — Preview of BAL99 PDF

Datasheet Specifications

Part number: BAL99
Manufacturer: Sunmate
File Size: 424.36 KB
Datasheet: BAL99-Sunmate.pdf
Description: SURFACE MOUNT SWITCHING DIODE

Applications

* ! High Conductance Mechanical Data ! Case: SOT-23 ! Marking:KF ! Weight: 0.008 grams (approx. ) A BC TOP VIEW E D G H K M J L D SOT-23 Dim Min Max A 0.37 0.51 B 1.20 1.40 C 2.30 2.50 D 0.89 1.03 E 0.45 0.60 G 1.78 2.05 H 2.80 3.00 J 0.013 0.10 K 0.903 1.10 L 0.45 0.61 M
