BAV19W SURFACE MOUNT FAST SWITCHING DIODE

Sunmate

Description

BAV19W - BAV21W SURFACE MOUNT FAST SWITCHING DIODE .

📥 Download Datasheet

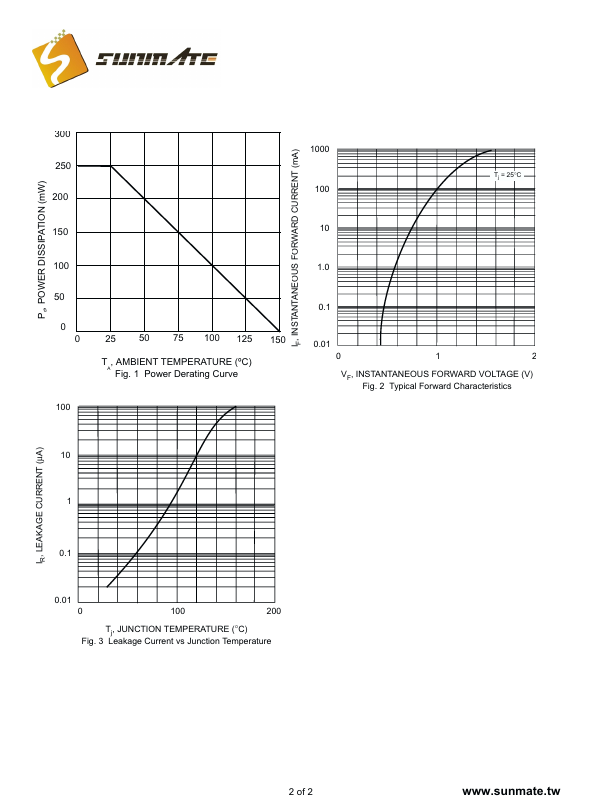

BAV19W Datasheet Preview — Preview of BAV19W PDF

Datasheet Specifications

Part number: BAV19W
Manufacturer: Sunmate
File Size: 1.13 MB
Datasheet: BAV19W-Sunmate.pdf
Description: SURFACE MOUNT FAST SWITCHING DIODE

Applications

* Mechanical Data ! Case: SOD-123FL plastic body over passivated junction ! Terminals : Plated axial leads, ! solderable per MIL-STD-750,Method 2026 ! Polarity : Color band denotes cathode end ! Mounting Position : Any ! Weight:0.0007 ounce, 0.02 grams B C E D H L E A SOD-123FL Dim Min Max Typ A
