BAV20, BAV17 SMALL SIGAL SWITCHING DIODES

BAV20 Description

BAV17 - BAV21 SMALL SIGAL SWITCHING DIODES .

BAV20 Features

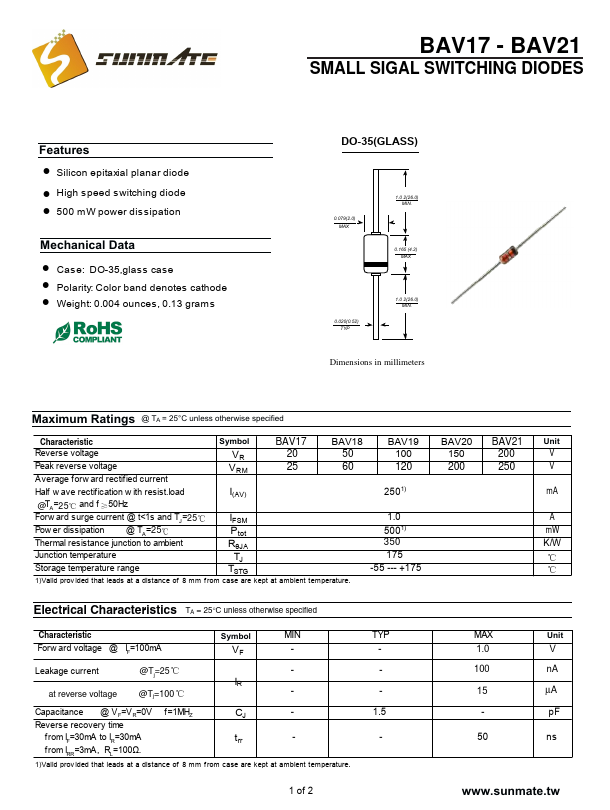

* ! Silicon epitaxial planar diode ! High speed switching diode ! 500 m W power dissipation Mechanical Data ! Case: DO-35,glass case ! Polarity: Color band denotes cathode ! Weight: 0.004 ounces, 0.13 gram s DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BAV20, BAV17. Please refer to the document for exact specifications by model.

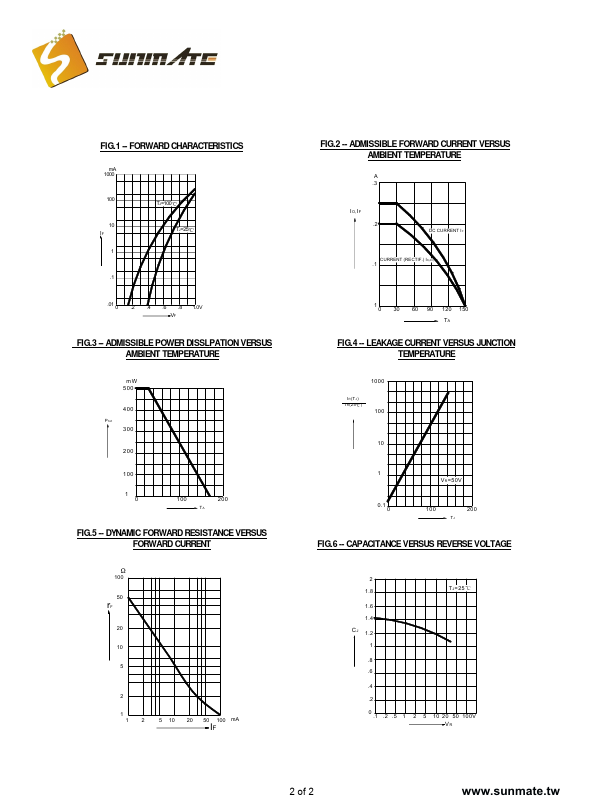

datasheet Preview Page 2
