BR1006, BR1005 - SINGLE-PHASE SILICON BRIDGE RECTIFIER

Sunmate

Datasheet Details

Part number	BR1006, BR1005
Manufacturer	Sunmate
File Size	451.71 KB
Description	SINGLE-PHASE SILICON BRIDGE RECTIFIER
Datasheet	BR1005-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: BR1006, BR1005. Please refer to the document for exact specifications by model.

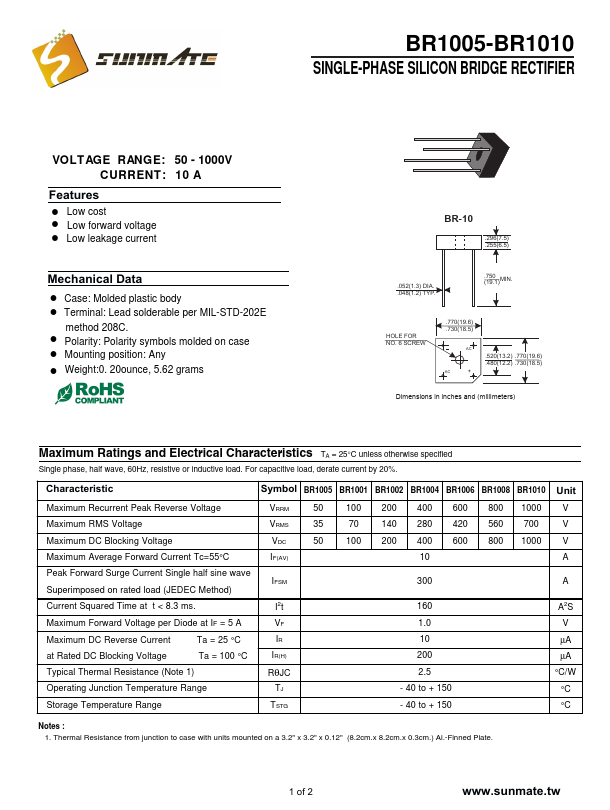

! Low cost ! Low forward voltage ! Low leakage current Mechanical Data ! Case: Molded plastic body ! Terminal: Lead solderable per MIL-STD-202E method 208C. ! Polarity: Polarity symbols molded on case ! Mounting position: Any ! Weight:0. 20ounce, 5.62 grams BR-10 .296(7.5) .255(6.5) .052(1.3) DIA. .048(1.2) TYP. (.71590.1)MIN. HOLE FOR NO. 6 SCREW .770(19.6) .730(18.5) AC .520(13.2) .770(19.6) .480(12.2) .730(18.5) AC + Dimensions in inches and (millimeters) Maximum Ratings and Electr.
