BY550-100, BY550-50 AXIAL LEADED SILICON RECTIFIER DIODES

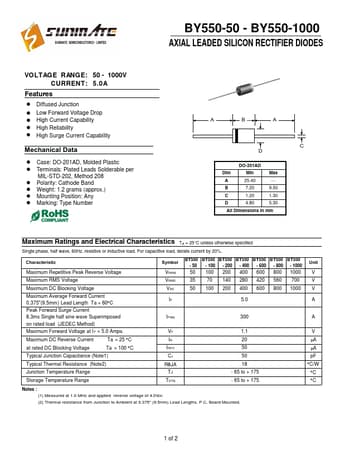

📥 Download Datasheet  Datasheet Preview Page 1

Description

BY550-50 - BY550-1000 AXIAL LEADED SILICON RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 5.0A .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BY550-100, BY550-50. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Specifications

Part number
BY550-100, BY550-50
Manufacturer
Sunmate
File Size
1.19 MB
Datasheet
BY550-50-Sunmate.pdf
Description
AXIAL LEADED SILICON RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: BY550-100, BY550-50.
Please refer to the document for exact specifications by model.

Features

* ! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability Mechanical Data ! Case: DO-201AD, Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 1.2 grams (approx. ) ! Mount
