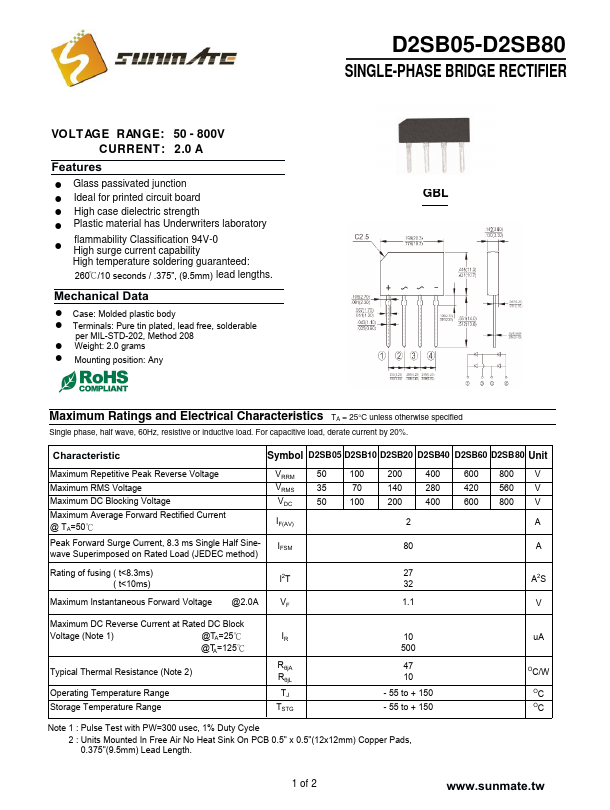

D2SB05 - SINGLE-PHASE BRIDGE RECTIFIER

Sunmate

Datasheet Details

Part number	D2SB05
Manufacturer	Sunmate
File Size	1.34 MB
Description	SINGLE-PHASE BRIDGE RECTIFIER
Datasheet	D2SB05-Sunmate.pdf

! Glass passivated junction ! Ideal for printed circuit board ! High case dielectric strength ! Plastic material has Underwriters laboratory ! flammability Classification 94V-0 High surge current capability High temperature soldering guaranteed: 260℃/10 seconds / .375", (9.5mm) lead lengths. Mechanical Data ! Case: Molded plastic body ! Terminals: Pure tin plated, lead free, solderable per MIL-STD-202, Method 208 ! Weight: 2.0 grams ! Mounting position: Any GBL Maximum Ratings and Ele.
