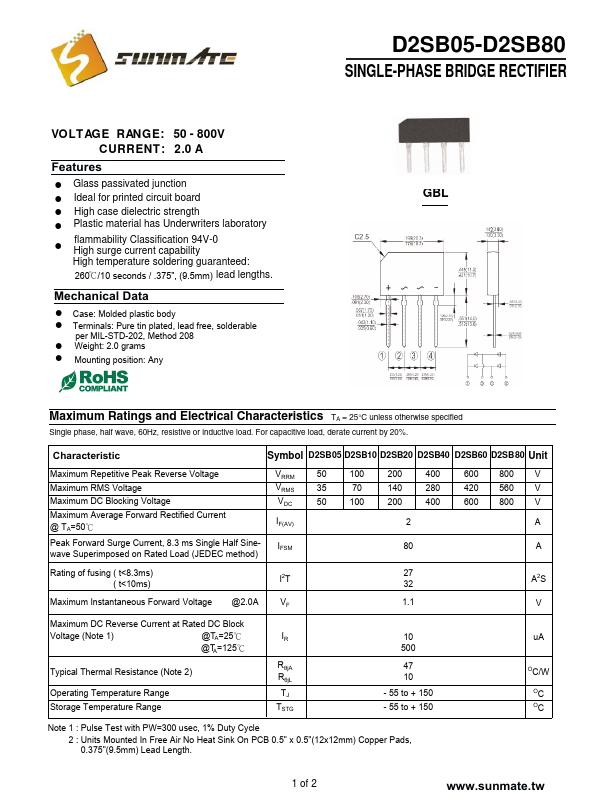

D2SB40
Features
! Glass passivated junction
! Ideal for printed circuit board
! High case dielectric strength
! Plastic material has Underwriters laboratory
! flammability Classification 94V-0 High surge current capability
High temperature soldering guaranteed:
260℃/10 seconds / .375", (9.5mm) lead lengths.
Mechanical Data
! Case: Molded plastic body ! Terminals: Pure tin plated, lead free, solderable per MIL-STD-202, Method 208
! Weight: 2.0 grams ! Mounting position: Any

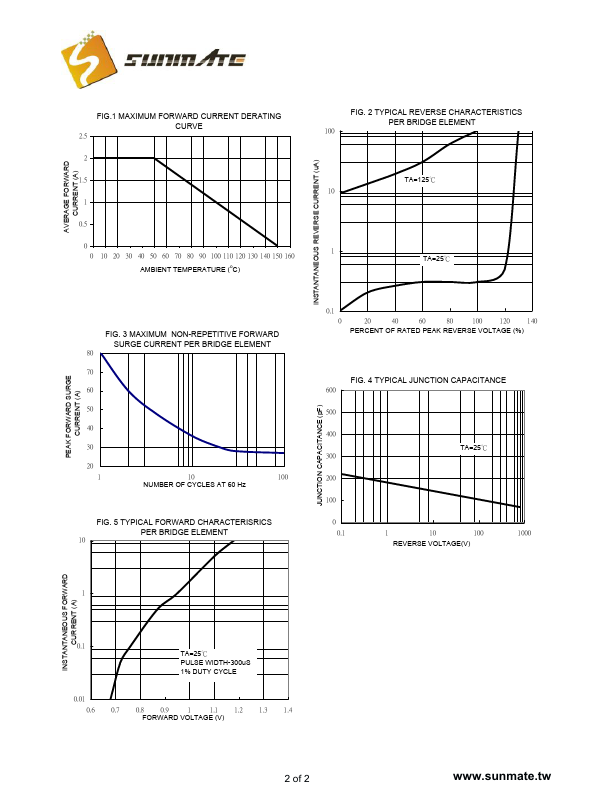

Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Characteristic
Symbol D2SB05 D2SB10 D2SB20 D2SB40 D2SB60 D2SB80 Unit
Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current @ TA=50℃
VRRM
600 800 V
VRMS
420 560 V
600 800...
