D5SB20 - SINGLE PHASE GLASSPASSIVATED SIP BRIDGE RECTIFIER

Product Overview

Sunmate

Part number	D5SB20
Manufacturer	Sunmate
File Size	959.06 KB
Description	SINGLE PHASE GLASSPASSIVATED SIP BRIDGE RECTIFIER
Datasheet	D5SB20 Datasheet
Note	This datasheet PDF includes multiple part numbers: D5SB20, D5SB10. Please refer to the document for exact specifications by model.

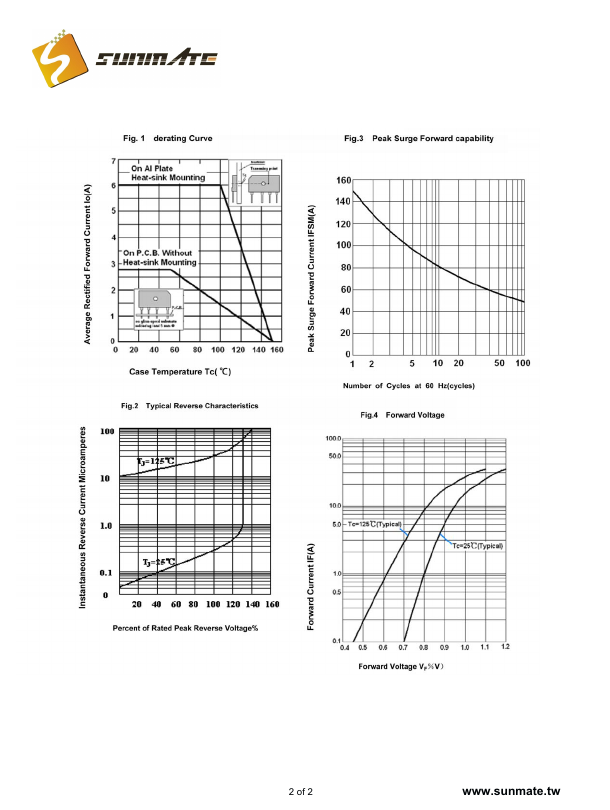

Additional preview pages of the D5SB20 datasheet.

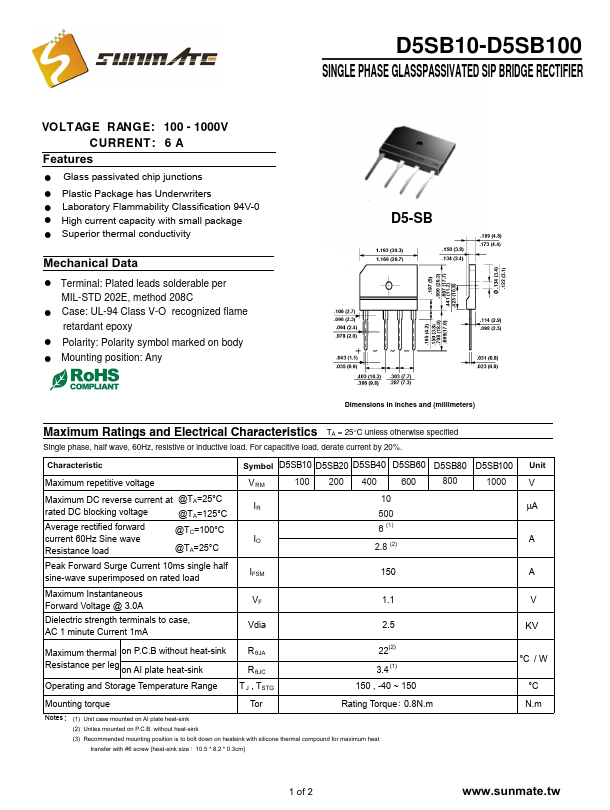

! Glass passivated chip junctions ! Plastic Package has Underwriters ! Laboratory Flammability Classification 94V-0 ! High current capacity with small package ! Superior thermal conductivity Mechanical Data ! Terminal: Plated leads solderable per MIL-STD 202E, method 208C ! Case: UL-94 Class V-O recognized flame retardant epoxy ! Polarity: Polarity symbol marked on body ! Mounting position: Any D5-SB Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics TA = 25.
