DFLR1600, DFLR1200 SURFACE MOUNT SILICON RECTIFIER DIODES

Sunmate

Description

DFLR1200 - DFLR1600 SURFACE MOUNT SILICON RECTIFIER DIODES VOLTAGE RANGE: 200 - 600V CURRENT: 1.0 A .

📥 Download Datasheet

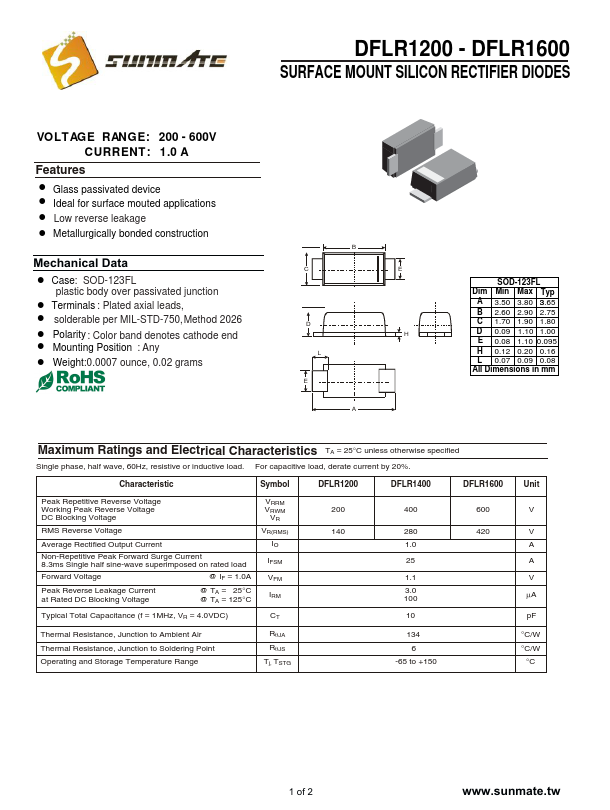

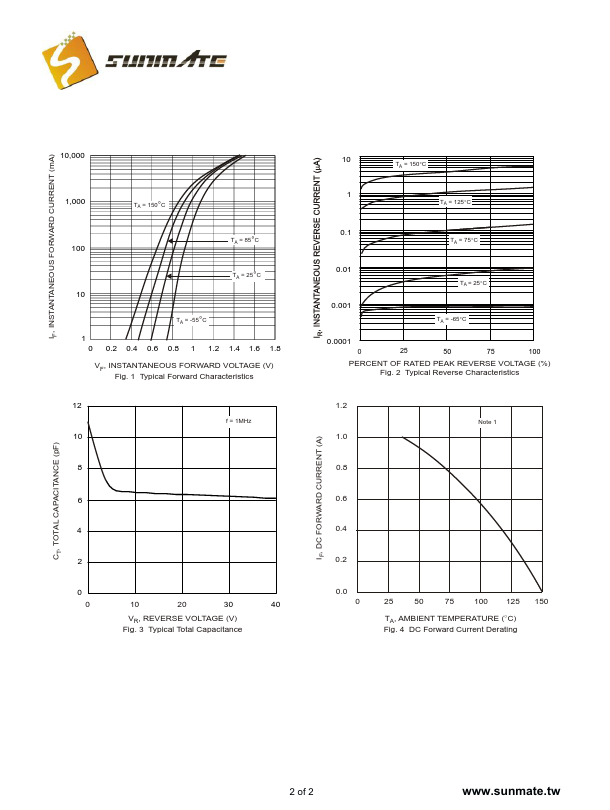

DFLR1600 Datasheet Preview — This datasheet PDF includes multiple part numbers: DFLR1600, DFLR1200. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: DFLR1600, DFLR1200
Manufacturer: Sunmate
File Size: 1.31 MB
Datasheet: DFLR1200-Sunmate.pdf
Description: SURFACE MOUNT SILICON RECTIFIER DIODES
Note: This datasheet PDF includes multiple part numbers: DFLR1600, DFLR1200.
Please refer to the document for exact specifications by model.

Applications

* ! Low reverse leakage ! Metallurgically bonded construction Mechanical Data ! Case: SOD-123FL plastic body over passivated junction ! Terminals : Plated axial leads, ! solderable per MIL-STD-750,Method 2026 ! Polarity : Color band denotes cathode end ! Mounting Position : Any ! Weight:0.0007 ounce,
