EC21QS06 - SURFACE MOUNT SCHOTTKY BARRIER DIODES

Name: EC21QS06
SKU: EC21QS06-1278097

Sunmate

The EC21QS06 by Sunmate is a SURFACE MOUNT SCHOTTKY BARRIER DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	EC21QS06
Manufacturer	Sunmate
File Size	522.53 KB
Description	SURFACE MOUNT SCHOTTKY BARRIER DIODES
Datasheet	EC21QS06-Sunmate.pdf

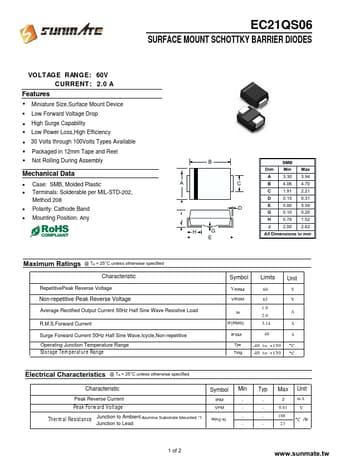

Additional preview pages of the EC21QS06 datasheet.

Miniature Size,Surface Mount Device.
Low Forward Voltage Drop.
High Surge Capability.
Low Power Loss,High Efficiency.
30 Volts through 100Volts Types Available.
Packaged in 12mm Tape and Reel.
Not Rolling During Assembly Mechanical Data.
Case: SMB, Molded Plastic.
Terminals: Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band.
Mounting Position: Any B SMB Dim Min Max A 3.30 3.94 A C B 4.06 4.70 C 1.91 2.21 D 0.15 0.31 D E.
