EM513 AXIAL LEADED SILICON RECTIFIER DIODES

Sunmate

Description

VOLTAGE RANGE: 1600 - 2000V CURRENT: 1.0 A .

📥 Download Datasheet

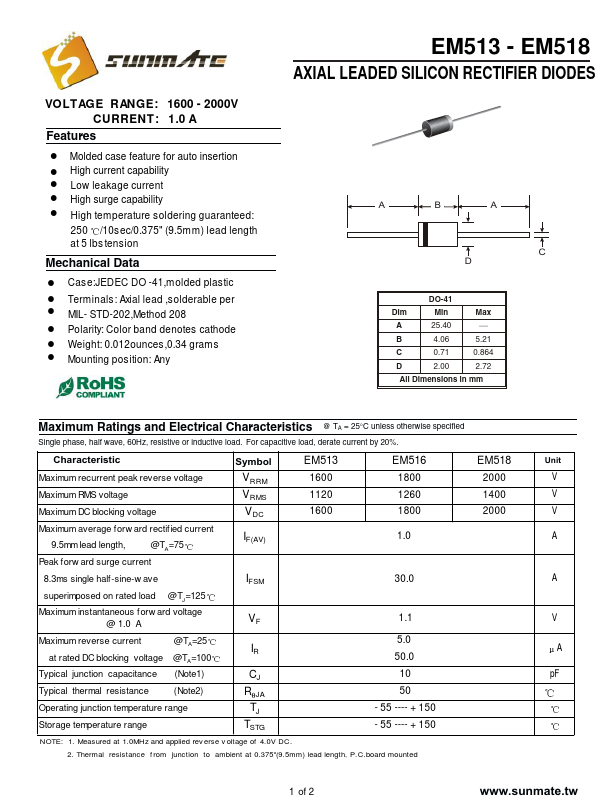

EM513 Datasheet Preview — Preview of EM513 PDF

Datasheet Specifications

Part number: EM513
Manufacturer: Sunmate
File Size: 123.39 KB
Datasheet: EM513-Sunmate.pdf
Description: AXIAL LEADED SILICON RECTIFIER DIODES

Features

* ! Molded case feature for auto insertion ! High current capability ! Low leakage current ! High surge capability ! High temperature soldering guaranteed: 250 /10sec/0.375" (9.5mm) lead length at 5 lbs tension Mechanical Data ! Case:JEDEC DO -41,molded plastic ! Terminals: Axial lead ,solderable per
