ESJA54-04A - High voltage diode

ESJA54-04A Description

ESJA54-04A HIGH VOLTAGE RECTIFIER DIODES VOLTAGE RANGE: 4.0KV CURRENT: 5.0 m A .

ESJA54-04A Applications

* X light Power supply Laser Voltage doubler circuit Microwave emission power Outline Drawings : mm Lot No. Cathode Mark o 3.0 o 0.5 27 min. 8.0 27 min. Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified Characteristic Repetitive Peak Renerse Voltage Average

📥 Download Datasheet

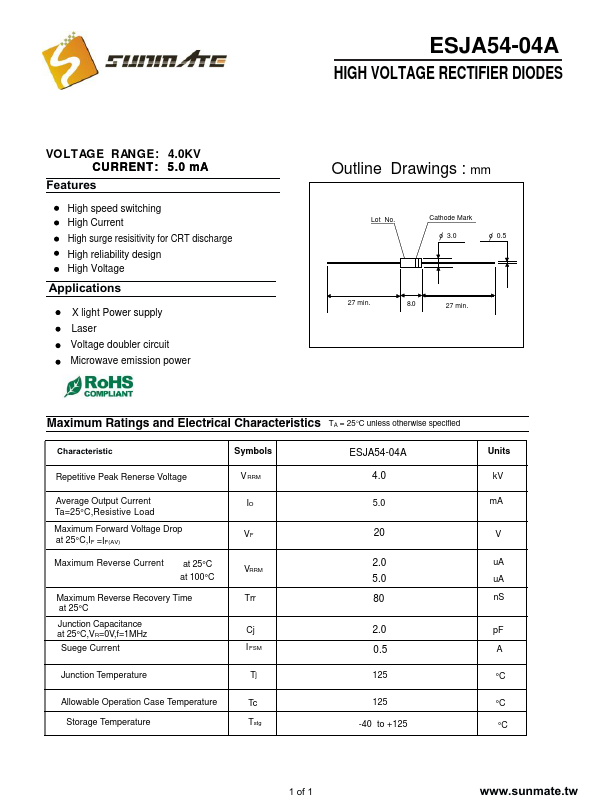

Preview of ESJA54-04A PDF

Datasheet Details

Part number
ESJA54-04A
Manufacturer
Sunmate
File Size
72.65 KB
Datasheet
ESJA54-04A-Sunmate.pdf
Description
High voltage diode
