ESJA54-08A - High voltage diode

ESJA54-08A Description

VOLTAGE RANGE: 8 .0KV CURRENT: 5.0 m A .

ESJA54-08A Applications

* X light Power supply Laser Voltage doubler circuit Microwave emission power ESJA54-08A HIGH VOLTAGE RECTIFIER DIODES Outline Drawings : mm Lot No. Cathode Mark o 3.0 o 0.5 27 min. 8.0 27 min. Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified Characteristic

📥 Download Datasheet

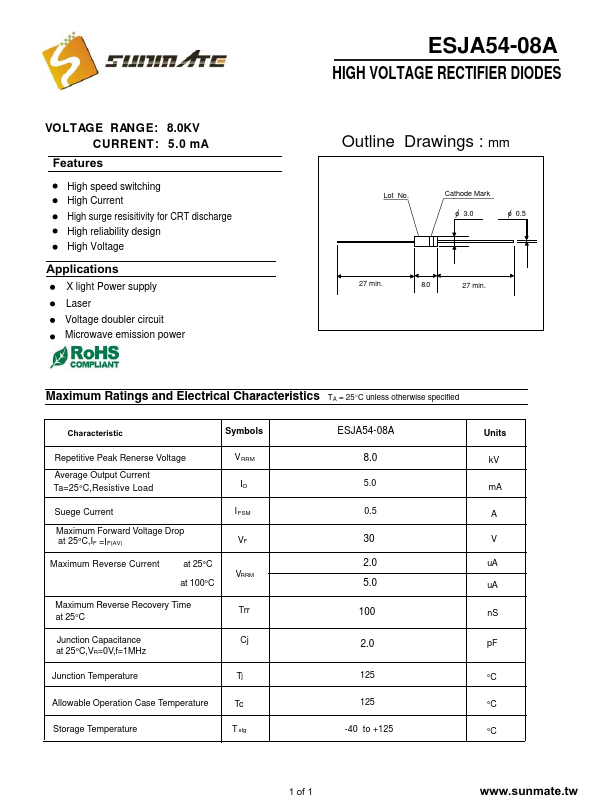

Preview of ESJA54-08A PDF

Datasheet Details

Part number
ESJA54-08A
Manufacturer
Sunmate
File Size
73.54 KB
Datasheet
ESJA54-08A-Sunmate.pdf
Description
High voltage diode
