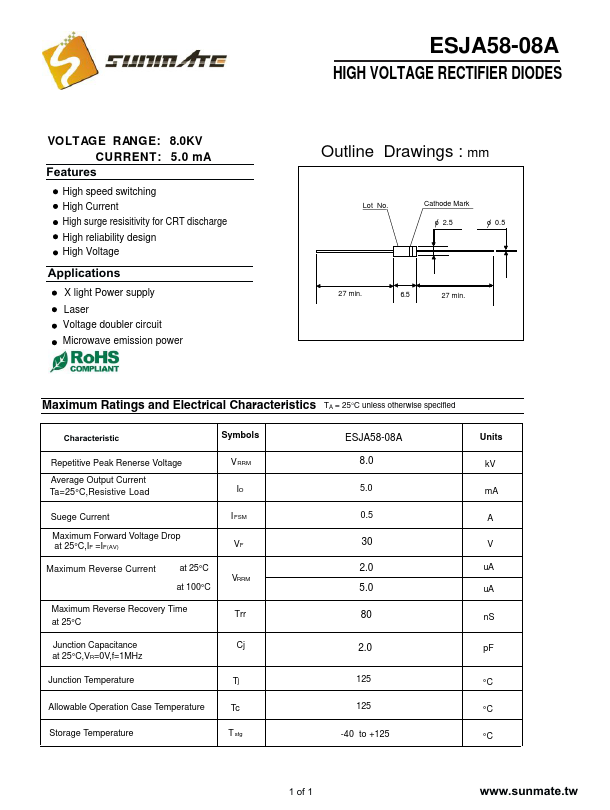

ESJA58-08A
Features
High speed switching High Current High surge resisitivity for CRT discharge High reliability design High Voltage
Applications
X light Power supply Laser Voltage doubler circuit Microwave emission power
Outline Drawings : mm
Lot No.
Cathode Mark o 2.5 o 0.5
27 min.
27 min.
Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified
Characteristic
Symbols
Repetitive Peak Renerse Voltage
Average Output Current Ta=25°C,Resistive Load
V RRM IO
Suege Current
Maximum Forward Voltage Drop at 25°C,IF =IF(AV)
Maximum Reverse Current at 25°C at 100°C
Maximum Reverse Recovery Time at 25°C
I FSM VF VRRM Trr
Junction Capacitance
Cj at 25°C,VR=0V,f=1MHz
Junction Temperature
Tj
Allowable Operation Case Temperature
Tc
Storage Temperature
T stg
ESJA58-08A 8.0 5.0 0.5 30 2.0 5.0 80
125 125 -40 to +125
Units k V m A A V u A u A n S p F
°C °C °C
