Datasheet Specifications
- Part number
- ESJA59-10A
- Manufacturer
- Sunmate
- File Size
- 75.35 KB
- Datasheet
- ESJA59-10A-Sunmate.pdf
- Description
- HIGH VOLTAGE RECTIFIER DIODES
Description
VOLTAGE RANGE: 10 KV CURRENT: 5.0 m A .
Applications

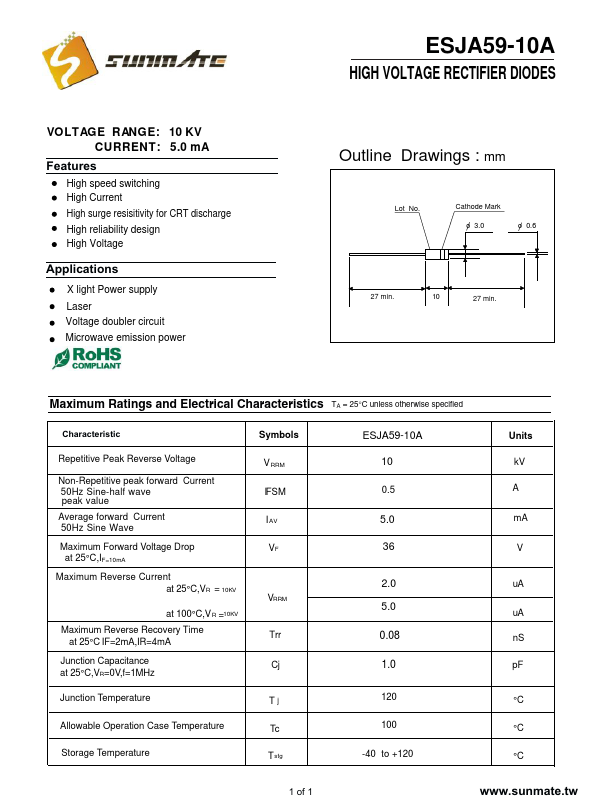

* X light Power supply Laser Voltage doubler circuit Microwave emission power ESJA59-10A HIGH VOLTAGE RECTIFIER DIODES Outline Drawings : mm Lot No. Cathode Mark o 3.0 o 0.6 27 min. 10 27 min. Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified CharacteristicESJA59-10A Distributors
