FFM101 - SUFACE MOUNT FAST RECOVERY RECTIFIER

FFM101 Description

FFM101 - FFM107 SUFACE MOUNT FAST RECOVERY RECTIFIER VOLTAGE RANGE: 50 - 1000V CURRENT: 1.0 A .

FFM101 Applications

* ! Low reverse leakage ! Metallurgically bonded construction ! High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data ! Case: JEDEC SOD-123FL molded plastic body over passivated chip ! Terminals : Plated axial leads, ! solderable per

📥 Download Datasheet

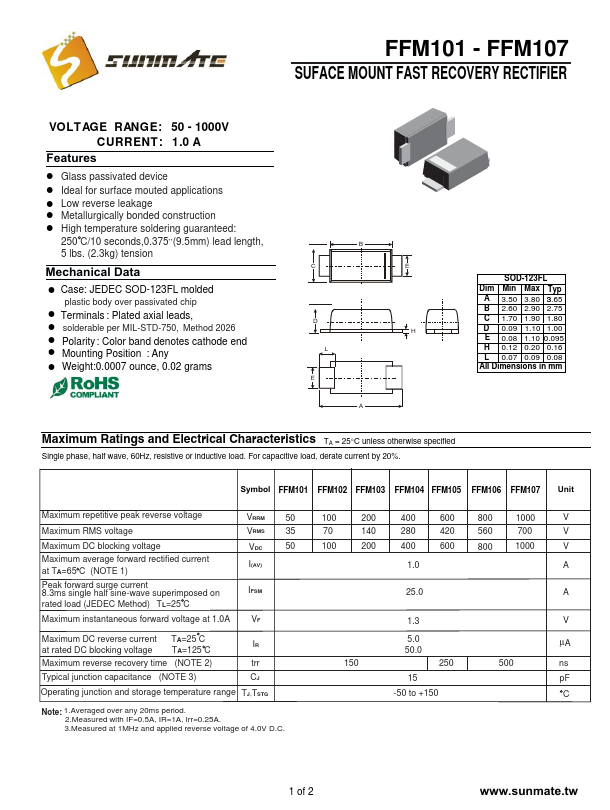

Preview of FFM101 PDF

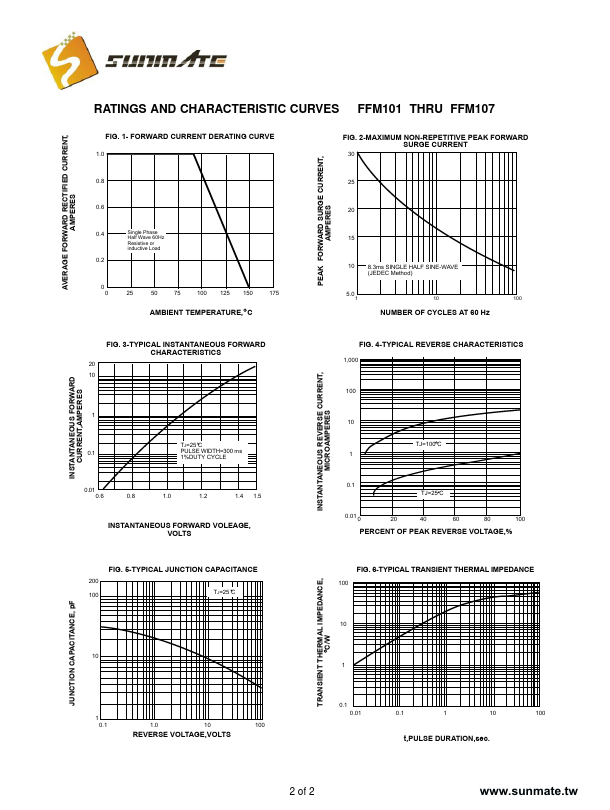

datasheet Preview Page 2

Datasheet Details

Part number
FFM101
Manufacturer
Sunmate
File Size
186.75 KB
Datasheet
FFM101-Sunmate.pdf
Description
SUFACE MOUNT FAST RECOVERY RECTIFIER
