FR201 FAST RECOVERY RECTIFIER DIODES

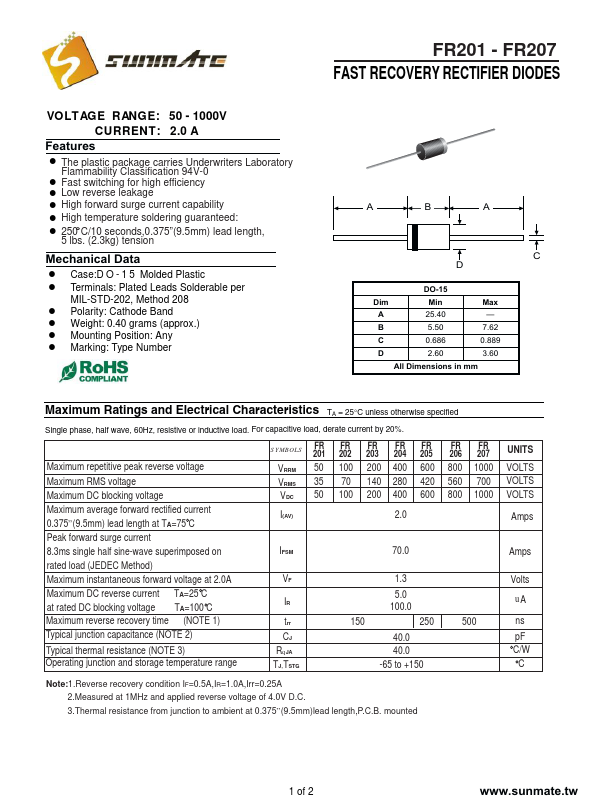

📥 Download Datasheet Datasheet Preview Page 1

Description

VOLTAGE RANGE: 50 - 1000V CURRENT: 2.0 A .

📥 Download Datasheet

Preview of FR201 PDF

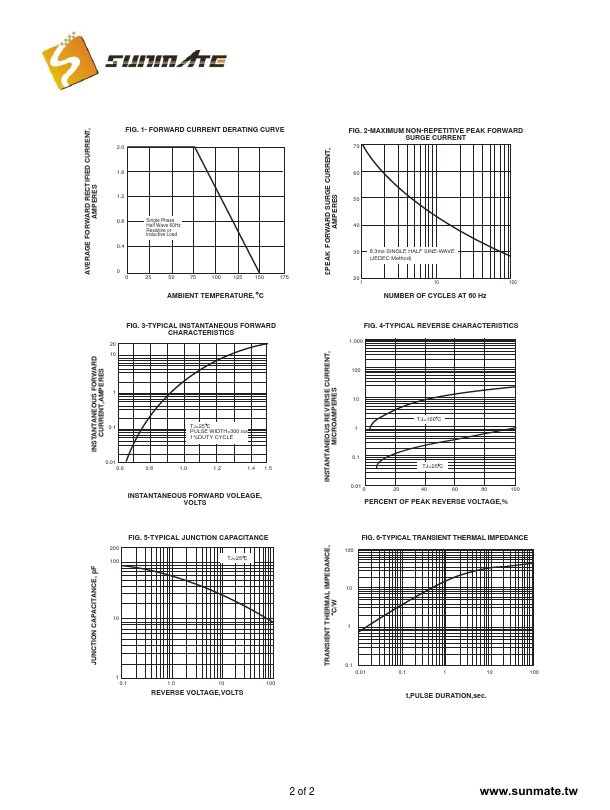

datasheet Preview Page 2

Datasheet Specifications

Part number
FR201
Manufacturer
Sunmate
File Size
149.51 KB
Datasheet
FR201-Sunmate.pdf
Description
FAST RECOVERY RECTIFIER DIODES

Features

* ! The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 ! Fast switching for high efficiency ! Low reverse leakage ! High forward surge current capability ! High temperature soldering guaranteed: ! 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension Mec
