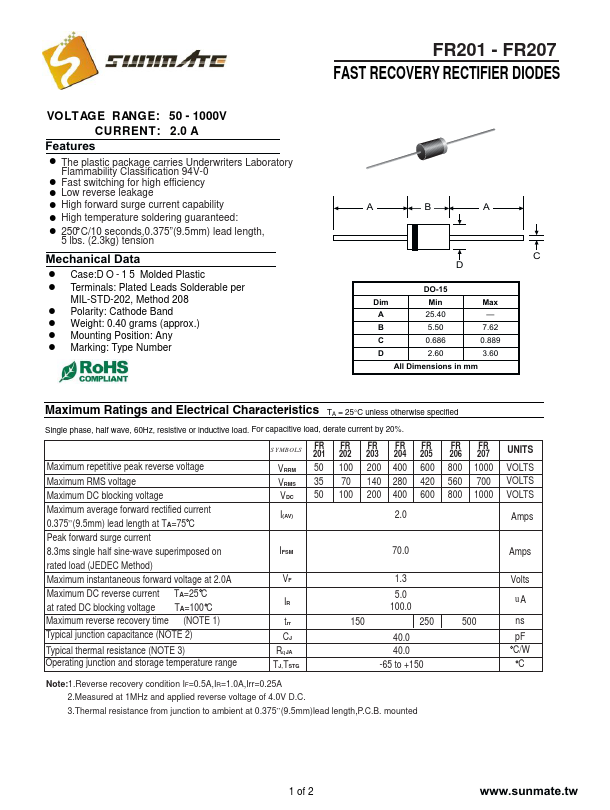

FR202, FR201 - FAST RECOVERY RECTIFIER DIODES

Sunmate

Datasheet Details

Part number	FR202, FR201
Manufacturer	Sunmate
File Size	149.51 KB
Description	FAST RECOVERY RECTIFIER DIODES
Datasheet	FR201-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: FR202, FR201. Please refer to the document for exact specifications by model.

! The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 ! Fast switching for high efficiency ! Low reverse leakage ! High forward surge current capability ! High temperature soldering guaranteed: ! 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data ! Case:D O - 1 5 Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.40 grams (approx. ) ! Mounting Position: Any ! Marking.
